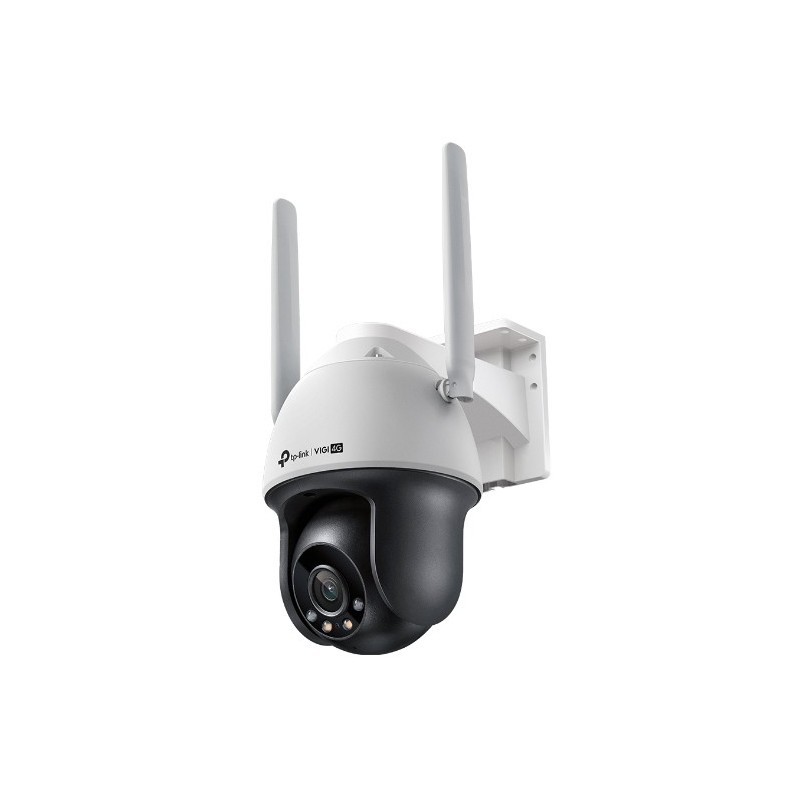

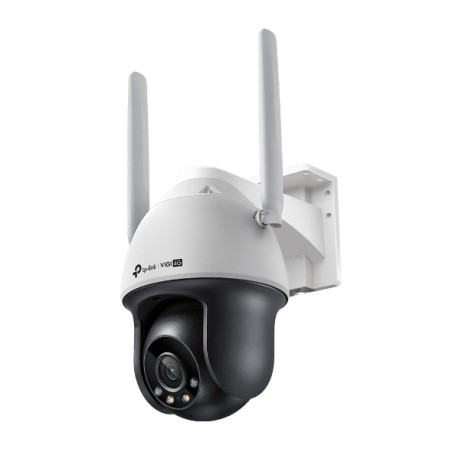

TP-Link VIGI C540-4G, IP security camera, Indoor & outdoor, Wired, 0.005 lm, RCM, BSMI, VCCI, NTRA, KC, Ceiling/wall
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Auto patrol mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Luminous flux | 0.005 lm |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Mounting type | Ceiling/wall |
| Product color | Black, White |
| Form factor | Turret |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 80° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, diagonal | 94° |
| Tilt angle range | 0 - 120° |
| Tilt speed | 44 °/sec |
| Pan range | 0 - 348° |
| Pan speed | 44 °/sec |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Sensor type | CMOS |
| Optical sensor size | 1/3.06" |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Detect distance | 3149.6" (80 m) |
| Observe distance | 1299.2" (33 m) |
| Recognize distance | 629.9" (16 m) |
| Lens diameter | 0.157" (4 mm) |
| Maximum aperture number | 1.6 |
| Identify distance | 315" (8 m) |
| Minimum aperture number | 1.6 |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| 3D positioning | Yes |
| Built-in speaker(s) | Yes |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Bit rate range | 64 - 64 Kbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| SIM card slot | Yes |
| SIM card type | NanoSIM |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G standards | WCDMA |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror | Yes |
| Digest authentication | Yes |
| Reset button | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Power source type | DC |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 4.72" (120 mm) |
| Depth | 7.17" (182 mm) |
| Height | 7.91" (201 mm) |
| Weight | 24.3 oz (690 g) |
| Basic event | Motion Detection, Camera Tampering Detection, Exception |
| Package width | 6.42" (163 mm) |
| Package depth | 8.39" (213 mm) |
| Package height | 9.57" (243 mm) |
| Package weight | 2.56 lbs (1.16 kg) |
| Compliance certificates | CE, RoHS |
| Number of cameras | 1 |
| Mounting kit | Yes |
