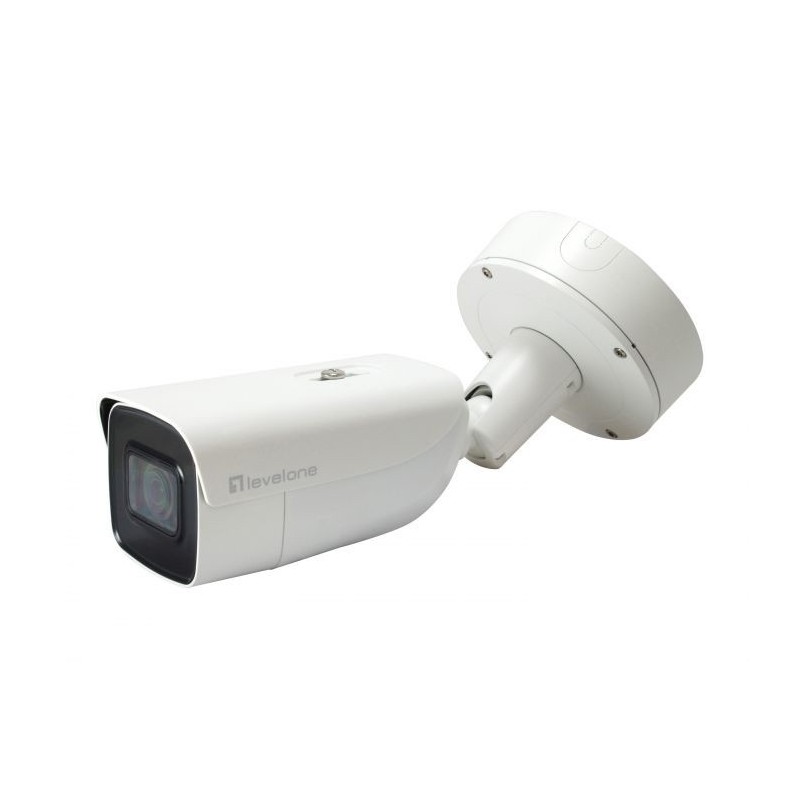

LevelOne FCS-5212 security camera Bullet IP security camera Indoor & outdoor 3200 x 1800 pixels Floor/wall

LevelOne FCS-5212. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Floor/wall, Product color: White, Form factor: Bullet. Lens viewing angle, horizontal: 32 - 106°, Lens viewing angle, vertical: 18 - 56°, Lens viewing angle, diagonal: 37 - 127°. Sensor type: CMOS, Optical sensor size: 1/2.8". Optical zoom: 4.3x, Focal length range: 2.8 - 12 mm

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	No
Mounting type	Floor/wall
Product color	White
Form factor	Bullet
LED indicators	Activity, Link, Power
Protection features	Vandal proof
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes
Country of origin	China
Minimum illumination	0 lx
Lens viewing angle, horizontal	32 - 106°
Lens viewing angle, vertical	18 - 56°
Lens viewing angle, diagonal	37 - 127°
Camera shutter speed	1/3 - 1/100000 s
Sensor type	CMOS
Optical sensor size	1/2.8"
Progressive scan	Yes
Zoom capability	Yes
Optical zoom	4.3x
Focal length range	2.8 - 12 mm
Night vision	Yes
Night vision distance	60 m
LED type	IR
Maximum resolution	3200 x 1800 pixels
Total megapixels	6 MP
Video compression formats	H.264, H.265, M-JPEG
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 3200 x 1800
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Audio system	2-way
Voice codecs	G.711, G.722.1, G.726, MP2L2, PCM
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3at
Number of simultaneous live view channels	3 channels
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSDHC, MicroSDXC
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
Terminal block port	Yes
Video motion detection	Yes
Active tampering alarm	Yes
Intelligent Video Surveillance (IVS) system features	Crossing line, Face detection, Intrusion
Mirror	Yes
Human and vehicle targets classification	Yes
Power source type	DC, PoE
Power consumption (max)	13 W
Power consumption (Power over Ethernet (PoE))	15 W
DC output voltage	12
DC output current	1.08 A
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	3.94" (100 mm)
Depth	11.8" (300 mm)
Height	3.15" (80 mm)
Weight	4.17 lbs (1.89 kg)
Package width	7.48" (190 mm)
Package depth	7.09" (180 mm)
Package height	15.2" (385 mm)
Package weight	4.43 lbs (2.01 kg)
Package type	Box
Compliance certificates	CE, Federal Communications Commission (FCC)
Number of cameras	1
Screws included	Yes
Number of cartons per pallet (air)	12 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	66.5" (168.8 cm)
Harmonized System (HS) code	8525890000
Master (outer) case width	22" (560 mm)
Master (outer) case length	15.9" (405 mm)
Master (outer) case height	23.2" (590 mm)
Master (outer) case weight	41.9 lbs (19 kg)
Quantity per master (outer) case	9 pc(s)
Sustainability compliance	Yes
