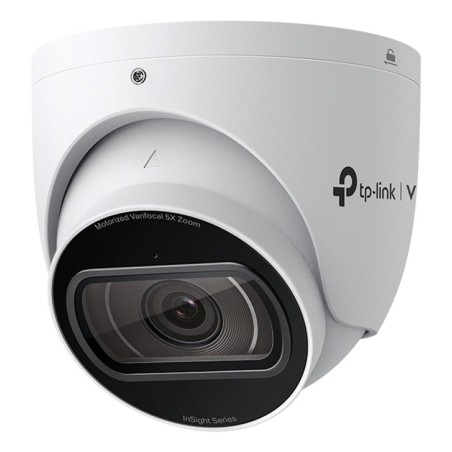

TP-Link VIGI InSight S445ZI Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling

TP-Link VIGI InSight S445ZI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 29.6–102, Lens viewing angle, vertical: 16.8–53.8. Sensor type: CMOS, Optical sensor size: 1/2.9". Optical zoom: 5x, Focal length range: 2.7 - 13.5 mm, Focus: Motorized

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Dynamic range	120 dB
Mounting type	Ceiling
Product color	White
Form factor	Turret
Housing material	Metal
Protection features	Waterproof
International Protection (IP) code	IP67
Weatherproof	Yes
Minimum illumination	0 lx
Angle of rotation	360°
Lens viewing angle, horizontal	29.6–102
Lens viewing angle, vertical	16.8–53.8
Lens viewing angle, diagonal	34.1–122.8
Tilt angle range	0 - 77°
Pan range	0 - 360°
Camera shutter speed	1/3 to 1/10000
Number of Privacy masking areas	4
Sensor type	CMOS
Optical sensor size	1/2.9"
Progressive scan	Yes
Number of lenses	1
Zoom capability	Yes
Optical zoom	5x
Focal length range	2.7 - 13.5 mm
Auto focus	Yes
Focus	Motorized
Maximum aperture number	1.6
Detect distance (wide)	2598.4" (66 m)
Detect distance (tele)	8149.6" (207 m)
Observe distance (wide)	1102.4" (28 m)
Observe distance (tele)	3385.8" (86 m)
Recognize distance (wide)	511.8" (13 m)
Recognize distance (tele)	1614.2" (41 m)
Identify distance (wide)	275.6" (7 m)
Identify distance (tele)	826.8" (21 m)
Night vision	Yes
Night vision distance	60 m
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850 nm
Maximum resolution	2688 x 1520 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video recording	Yes
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Audio system	2-way
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Audio formats supported	G.711 A-law
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Number of microphones	1
Bit rate range	0 - 64 Kbit/s
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view	Yes
Number of simultaneous live view channels	6 channels
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Alarm input channels	1
Alarm output channels	1
Built-in siren	Yes
Password protection	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Alert notification type	Push notification
Privacy protection	Yes
Motion sensor	Yes
Mirror	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Cloud-managed	Yes
Web browser	Yes
Reset button	Yes
Power source type	DC, PoE
Power consumption (max)	10.8 W
Power consumption (Power over Ethernet (PoE))	12 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Height	3.64" (92.5 mm)
Diameter	4.41" (11.2 cm)
Weight	25 oz (710 g)
Package weight	33.9 oz (960 g)
Package type	Box
Number of cameras	1
Mounting kit	Yes
Screws included	Yes
Drilling template included	Yes
Manual	Yes
