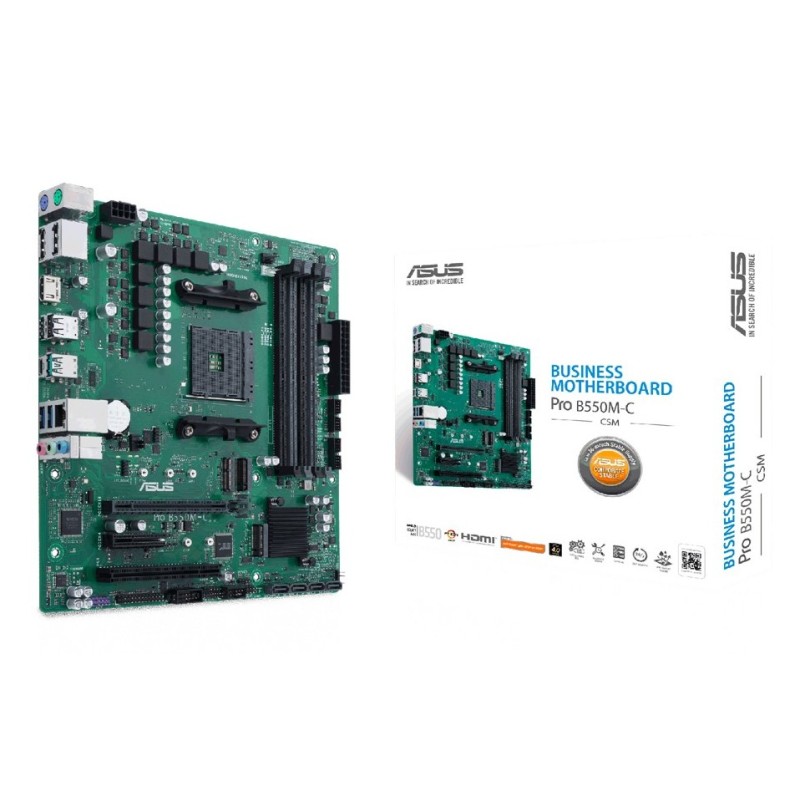

ASUS PRO B550M-C/CSM AMD B550 Socket AM4 micro ATX

ASUS PRO B550M-C/CSM. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Athlon, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Athlon, AMD Ryzen 3000 Series
Maximum number of SMP processors	1
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC
Supported memory clock speeds	2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	SATA III
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	1
CPU fan connector	Yes
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
eSATA ports quantity	0
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
HDMI version	2.1
DisplayPorts quantity	2
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Wake-on-LAN ready	Yes
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Audio chip	Realtek ALC887 / Realtek ALC897
Windows operating systems supported	Windows 10 x64
PCI Express x4 slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI slots	1
Number of M.2 (M) slots	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Harmonized System (HS) code	84733020
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Height	2.01" (51 mm)
Cables included	SATA
Drivers included	Yes
Weight	29.8 oz (845 g)
