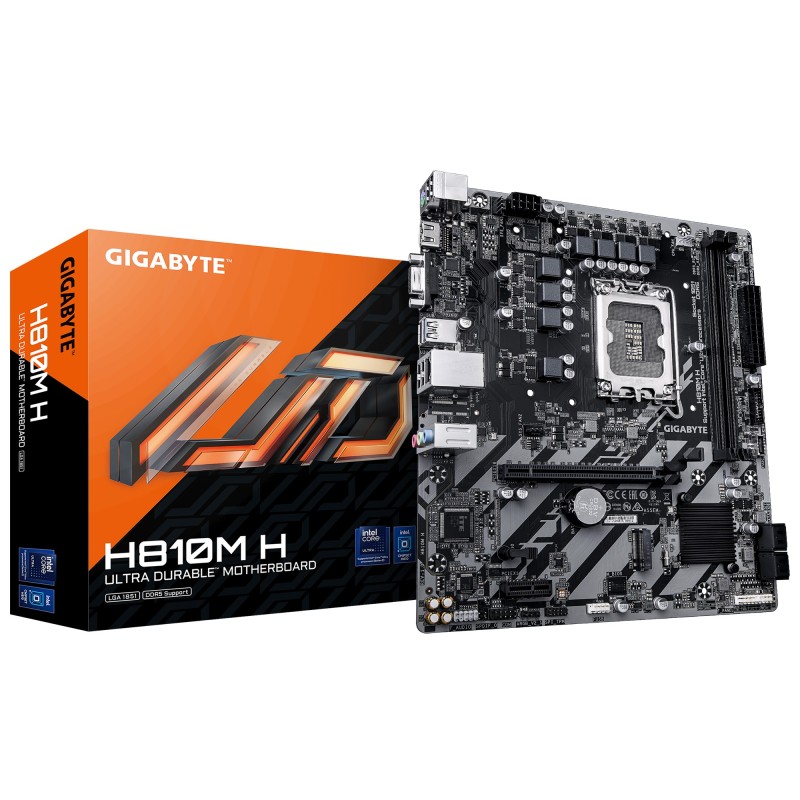

GIGABYTE H810M H motherboard Intel H810 LGA 1851 (Socket V1) micro ATX

GIGABYTE H810M H. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	5600,6400 MHz
Supported memory clock speed (max)	6400 MHz
Unbuffered memory	Yes
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	5
RAID support	Yes
RAID levels	0, 1, 5, 10
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
S/PDIF out connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	1
TPM connector	Yes
Serial port headers	1
RGB LED pin header	Yes
Number of RGB LED pin headers	2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111H
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel H810
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Product color	Dark brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	10.4" (265 mm)
Package depth	10.4" (265 mm)
Package height	2.13" (54 mm)
Package weight	30.3 oz (860 g)
Width	9.61" (244 mm)
Depth	8.46" (215 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Weight	30.3 oz (860 g)
Warranty period	3 year(s)
