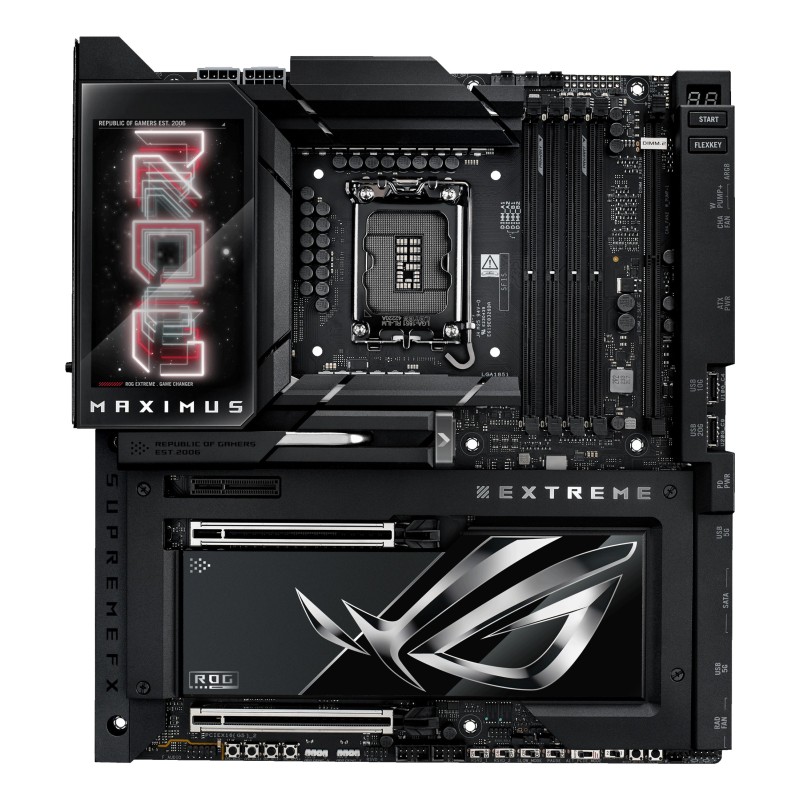

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

ASUS ROG MAXIMUS Z890 EXTREME. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	192 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speed (max)	8800 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	10
RAID support	Yes
RAID levels	0, 1, 5
Parallel processing technology support	Not supported
On-board graphics card	No
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes
Thunderbolt ports quantity	2
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	Extended ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Audio output channels	7.1 channels
Audio chip	Realtek ALC4082
Product color	Black
Windows operating systems supported	Windows 11
PCI Express x4 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
Number of M.2 (M) slots	6
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
Clear CMOS button	Yes
Package width	15" (380 mm)
Package depth	12.6" (320 mm)
Package height	4.92" (125 mm)
Package weight	12.6 lbs (5.73 kg)
Width	12" (305 mm)
Depth	10.9" (277 mm)
mSATA ports quantity	0
