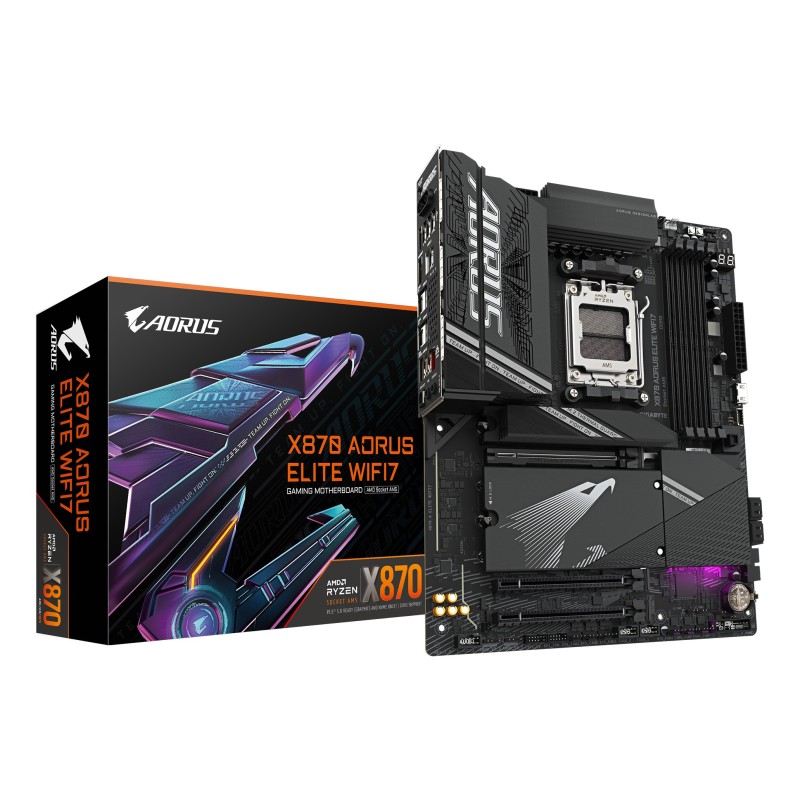

GIGABYTE X870 AORUS ELITE WIFI7 AMD X870 Socket AM5 ATX

GIGABYTE X870 AORUS ELITE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Maximum internal memory supported by processor	256 GB
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	256 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)	8200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Maximum internal memory per slot	64 GB
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	8
RAID support	Yes
RAID levels	0, 1, 10
Parallel processing technology support	Not supported
On-board graphics card	No
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	6
EPS power connector (8-pin)	Yes
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
Number of water pump connectors	3
RGB LED pin header	Yes
Number of RGB LED pin headers	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB4 Gen 2×2 ports quantity	2
USB4 Gen 3×2 ports quantity	0
PS/2 ports quantity	0
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	2
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Realtek RTL8125
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7925
Bluetooth	Yes
Bluetooth version	5.4
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Audio chip	Realtek ALC1220
Product color	Black
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 11 x64
PCI Express x1 (Gen 3.x) slots	0
PCI Express x1 (Gen 4.x) slots	0
PCI Express x4 slots	2
PCI Express x4 (Gen 4.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x8 (Gen 5.x) slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	4
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Clear CMOS button	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	13.2" (335 mm)
Package depth	10.6" (270 mm)
Package height	3.15" (80 mm)
Package weight	6.04 lbs (2.74 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Height	1.38" (35 mm)
Batteries included	Yes
Antenna included	Yes
Screws included	Yes
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
mSATA ports quantity	0
PCI Express x4 (Gen 3.x) slots	0
Weight	5.29 lbs (2.4 kg)
Warranty period	3 year(s)
