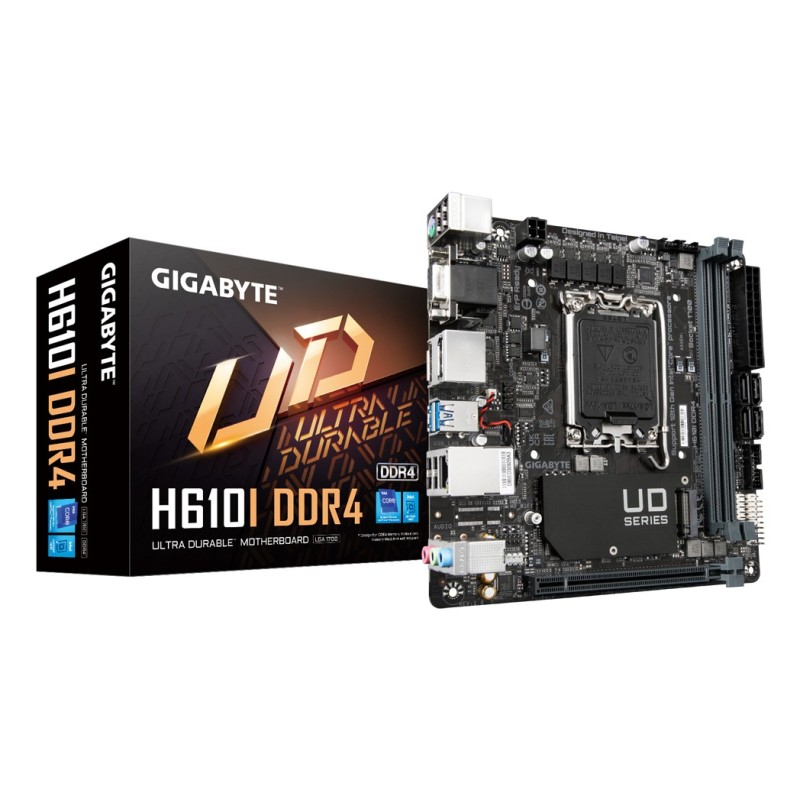

GIGABYTE H610I DDR4 motherboard Intel H610 Express LGA 1700 mini ITX

GIGABYTE H610I DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	64 GB
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Maximum internal memory	64 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max)	3200 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	5
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
DirectX version	12.0
Number of displays supported	3
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
TPM connector	Yes
Serial port headers	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2
Headphone outputs	3
Microphone in	Yes
USB connector type	USB Type-A
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610 Express
Audio output channels	7.1 channels
Product color	Brown
PC health monitoring	Fan, Temperature, Voltage
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	Yes
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Harmonized System (HS) code	84733020
Battery weight	0.106 oz (3 g)
Lithium weight per battery	0.00247 oz (0.0700 g)
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	8.74" (222 mm)
Package depth	7.09" (180 mm)
Package height	2.56" (65 mm)
Package weight	25.1 oz (711 g)
Width	6.69" (170 mm)
Depth	6.69" (170 mm)
Height	1.38" (35 mm)
Cables included	SATA
Batteries included	Yes
Bundled software	Norton Internet Security (OEM version), LAN bandwidth management software
Warranty period	3 year(s)
