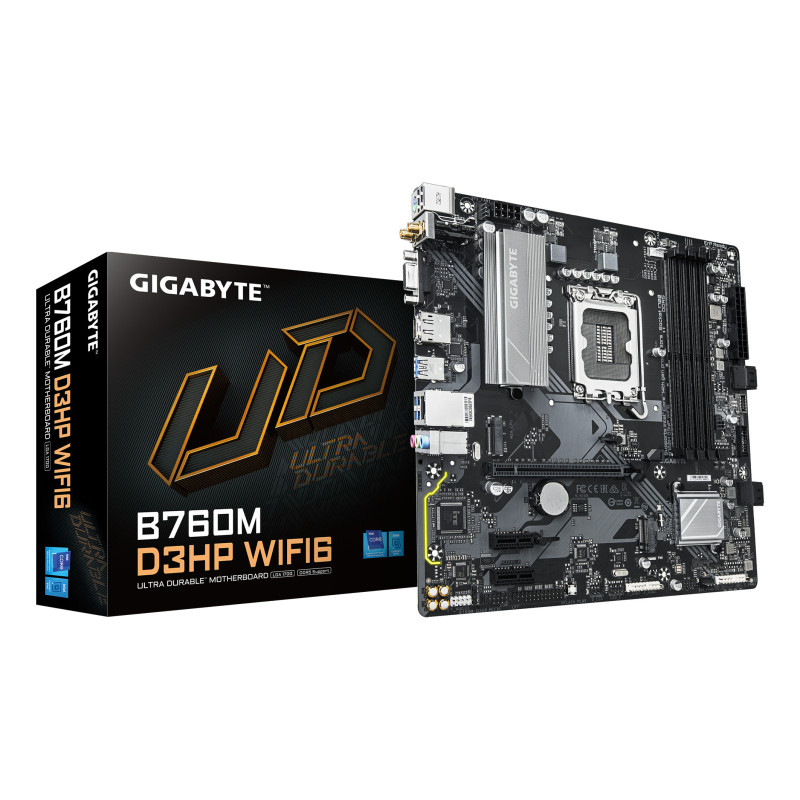

GIGABYTE B760M D3HP WIFI6 motherboard Intel B760 Express LGA 1700 micro ATX
  • GIGABYTE B760M D3HP WIFI6 motherboard Intel B760 Express LGA 1700 micro ATX
  • GIGABYTE B760M D3HP WIFI6 motherboard Intel B760 Express LGA 1700 micro ATX
  • GIGABYTE B760M D3HP WIFI6 motherboard Intel B760 Express LGA 1700 micro ATX

GIGABYTE B760M D3HP WIFI6 motherboard Intel B760 Express LGA 1700 micro ATX

B681B70292

GIGABYTE B760M D3HP WIFI6, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 192 GB

€131.47
Tax included
Quantity
Last items in stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Buy it now and receive it between 8/29/25 and 9/3/25 with Corriere Espresso

Description
GIGABYTE B760M D3HP WIFI6. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots4
Maximum internal memory192 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds4400,4800,5200,5600 MHz
Supported memory clock speed (max)5600 MHz
Unbuffered memoryYes
Maximum internal memory per slot48 GB
Supported storage drive interfacesM.2, PCI Express 4.0, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
Parallel connectorYes
Serial port headers1
12V power connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers2
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
PS/2 ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Wi-FiYes
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
WLAN controller modelRealtek RTL8851BE
BluetoothYes
Bluetooth version5.3
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760 Express
Audio output channels7.1 channels
Audio chipRealtek ALC897
Product colorDark brown
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Quantity per shipping (inner) case1 pc(s)
Battery weight0.106 oz (3 g)
Lithium weight per battery0.00247 oz (0.0700 g)
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width10.4" (265 mm)
Package depth10.4" (265 mm)
Package height2.13" (54 mm)
Package weight2.65 lbs (1.2 kg)
Width9.61" (244 mm)
Depth9.61" (244 mm)
Height1.38" (35 mm)
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Weight2.45 lbs (1.11 kg)
Warranty period3 year(s)
Product Details
Gigabyte
B681B70292
1 Item

Specific References

EAN13
4719331867638
Auf dieses Produkt wird eine Garantie von 24 Monaten gewährt, von denen die ersten 12 in allen autorisierten italienischen Kundendienstzentren vom Hersteller stammen. Alle Unterlagen in der Verpackung sind mit einem offiziellen Garantieschein versehen, sofern vorhanden.
Bei Störungen, die in den ersten 12 Monaten auftreten, können Sie sich an eine der autorisierten Stellen in ganz Italien wenden. Für die folgenden 12 Monate können Sie uns per E-Mail unter info@hitechonline.it eine detaillierte Beschreibung des Problems, ein Foto mit der Seriennummer des Objekts und ein mögliches Foto mit weiteren Details zu der oben genannten Störung zusenden.
Sobald wir Ihre Anfrage erhalten haben, geben wir Ihnen eine RMA-Nummer für die Praxis und geben Ihnen inhaltlich alle Anweisungen, um uns das Paket korrekt zuzusenden.
Sobald wir es erhalten haben, analysieren wir das Produkt und senden es zur Reparatur an unseren vertrauenswürdigen Reparaturbetrieb.
Wir werden uns nach Abschluss der Reparatur mit Ihnen in Verbindung setzen und Ihnen den Paketverfolgungscode zusenden.
