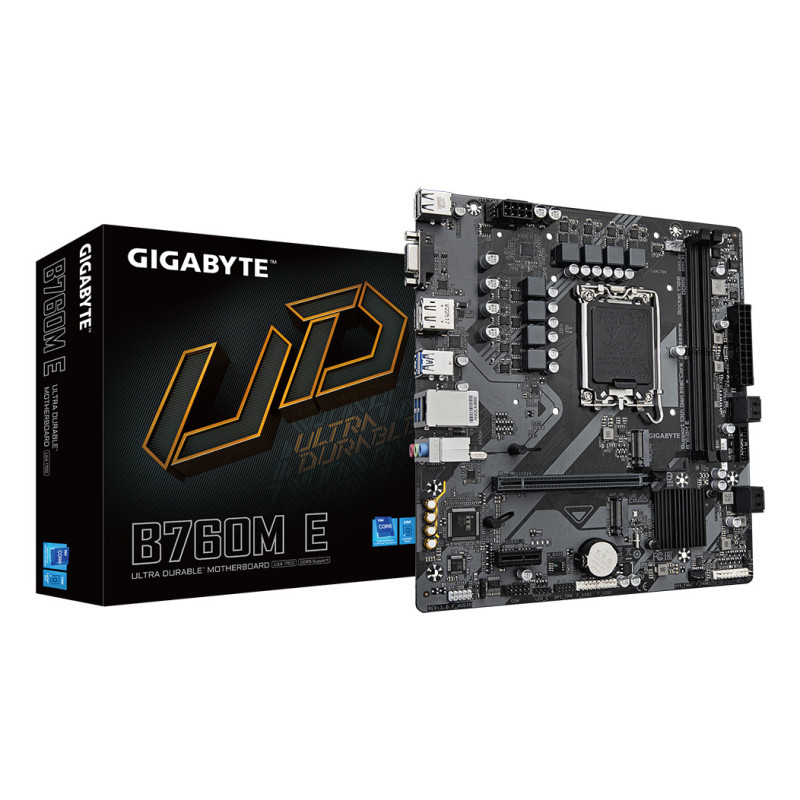

GIGABYTE B760M E motherboard Intel B760 LGA 1700 micro ATX

5EA84F858B

GIGABYTE B760M E, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 128 GB

€118.60
Tax included
Quantity
Last items in stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Description
GIGABYTE B760M E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold
Supported processor socketsLGA 1700
Supported memory typesDDR5-SDRAM
Number of memory slots2
Maximum internal memory128 GB
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz
Supported memory clock speed (max)7200 MHz
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10
Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
DirectX version12.0
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
Serial port headers1
12V power connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Line-inYes
Microphone inYes
Wi-FiNo
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B760
Audio output channels7.1 channels
Audio chipRealtek ALC897
Product colorDark brown
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Country of originChina
Quantity per shipping (inner) case1 pc(s)
Battery weight0.106 oz (3 g)
Lithium weight per battery0.00247 oz (0.0700 g)
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Package width10.4" (265 mm)
Package depth10.4" (265 mm)
Package height2.13" (54 mm)
Package weight31.7 oz (900 g)
Width9.06" (230 mm)
Depth8.46" (215 mm)
Height1.38" (35 mm)
Batteries includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Warranty period3 year(s)
