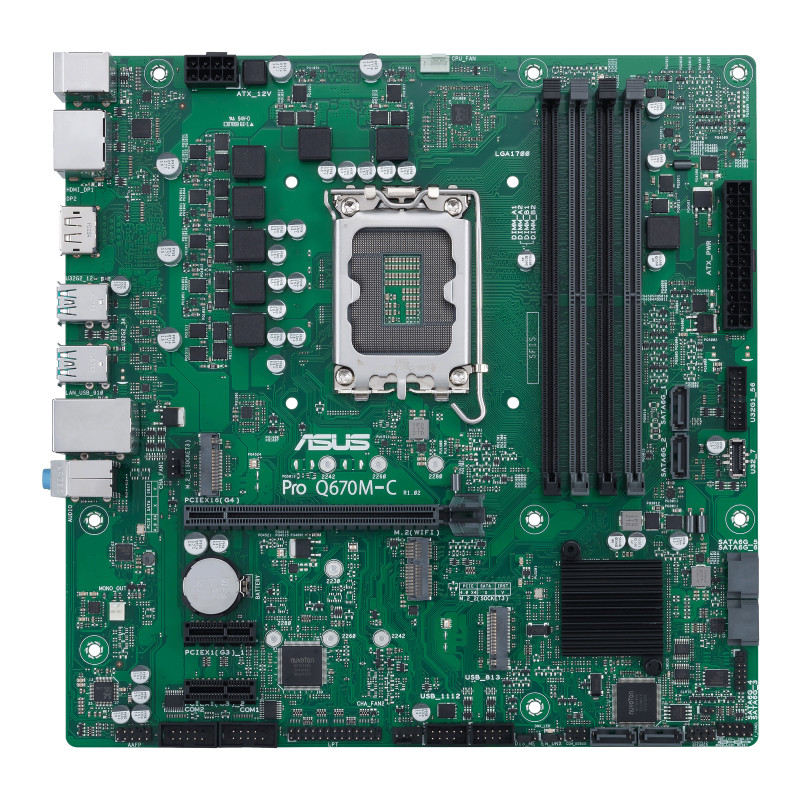

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX

ASUS PRO Q670M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	128 GB
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	4800 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	6
Number of storage drives supported	8
RAID support	Yes
RAID levels	0, 1, 5, 10
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	6
Audio connector	Yes
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Number of COM connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
DVI-D ports quantity	0
PS/2 ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	2
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Audio output channels	7.1 channels
Cooling type	Active
Power source type	ATX
Number of mounting holes	8
Windows operating systems supported	Windows 10, Windows 11
Compatible operating systems	Windows® 11 64-bit, Windows® 10 64-bit
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	2
BIOS memory size	256 Mbit
Harmonized System (HS) code	84733020
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Height	2.01" (51 mm)
Cables included	SATA
Drivers included	Yes
Weight	22.4 oz (634 g)
