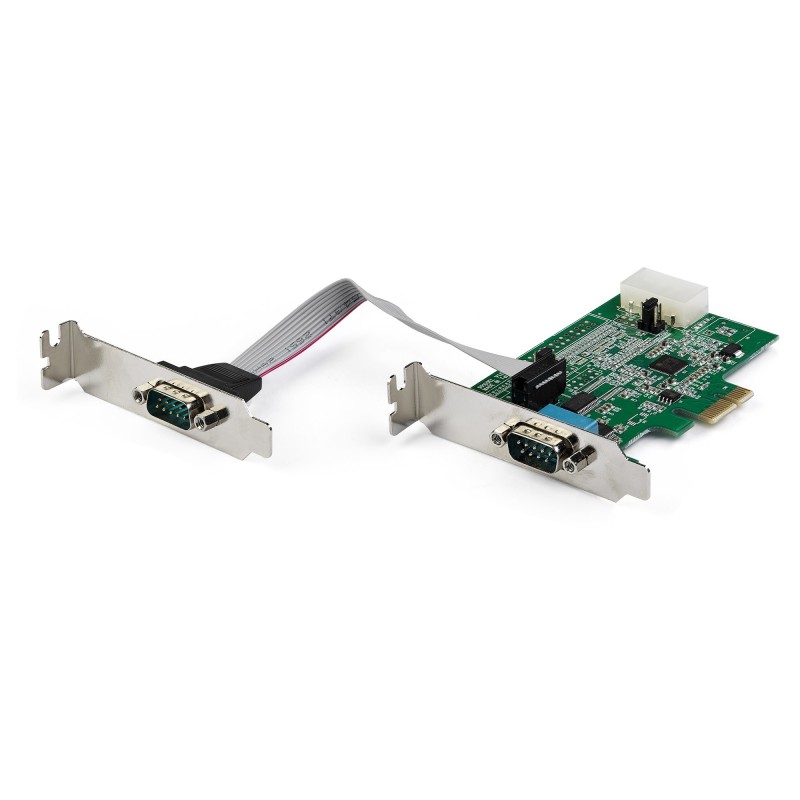

StarTech.com PEX2S953LP, Mini PCI Express, Serial, PCIe 1.1, RS-232, 222366 h, CE, FCC
| Host interface | Mini PCI Express |
| Output interface | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Internal | Yes |
| Mean time between failures (MTBF) | 222366 h |
| Certification | CE, FCC |
| Chipset | Asix AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Compliance certificates | RoHS |
| Width | 2.64" (67 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.709" (18 mm) |
| Weight | 1.96 oz (55.6 g) |
| Quantity | 1 |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 5.59" (142 mm) |
| Package depth | 6.77" (172 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 5.16 oz (146.4 g) |
| Harmonized System (HS) code | 84733020 |
| Quantity per master (outer) case | 75 pc(s) |
| Master (outer) case width | 14" (355 mm) |
| Master (outer) case length | 27.2" (690 mm) |
| Master (outer) case height | 12.5" (317 mm) |
