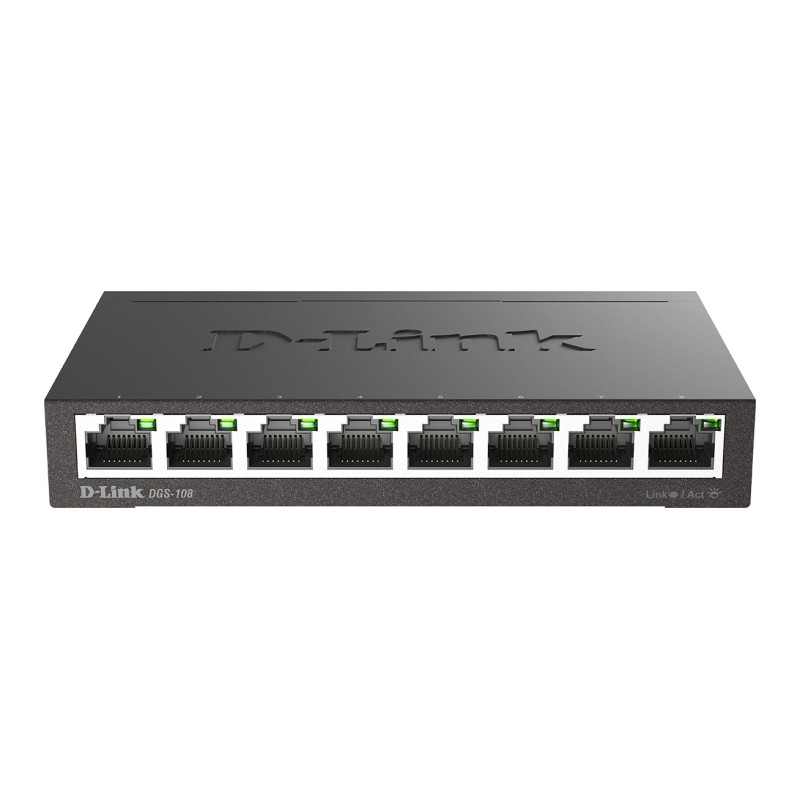

D-Link DGS-108 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

D-Link DGS-108. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
MAC address auto-learning supported	Yes
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Store-and-forward	Yes
Jumbo frames support	Yes
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.192 MB
IGMP snooping	Yes
MAC address filtering	Yes
Multicast support	Yes
Rack mounting	No
Product color	Black
Housing material	Metal
LED indicators	Link, Power
Mean time between failures (MTBF)	1467882 h
Power source	DC
Input current	1 A
Input voltage	5 V
Power consumption (typical)	2.8 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	5.46" (138.7 mm)
Depth	3.35" (85 mm)
Height	0.882" (22.4 mm)
Weight	9.52 oz (270 g)
Shipping (inner) case height	17.4" (44.3 cm)
Shipping (inner) case width	10.2" (26 cm)
Shipping (inner) case length	14.6" (37 cm)
Shipping (inner) case net weight	15.7 lbs (7.1 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	879.4 lbs (398.9 kg)
Number of cartons per pallet (air)	48 pc(s)
Quantity per pallet (air)	480 pc(s)
Pallet length	43.3" (110 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	77.4" (196.7 cm)
Pallet gross weight (sea)	879.4 lbs (398.9 kg)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per pallet (sea)	480 pc(s)
Pallet height (sea)	77.4" (196.7 cm)
Shipping (inner) case weight	17.2 lbs (7.79 kg)
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Harmonized System (HS) code	85176990
