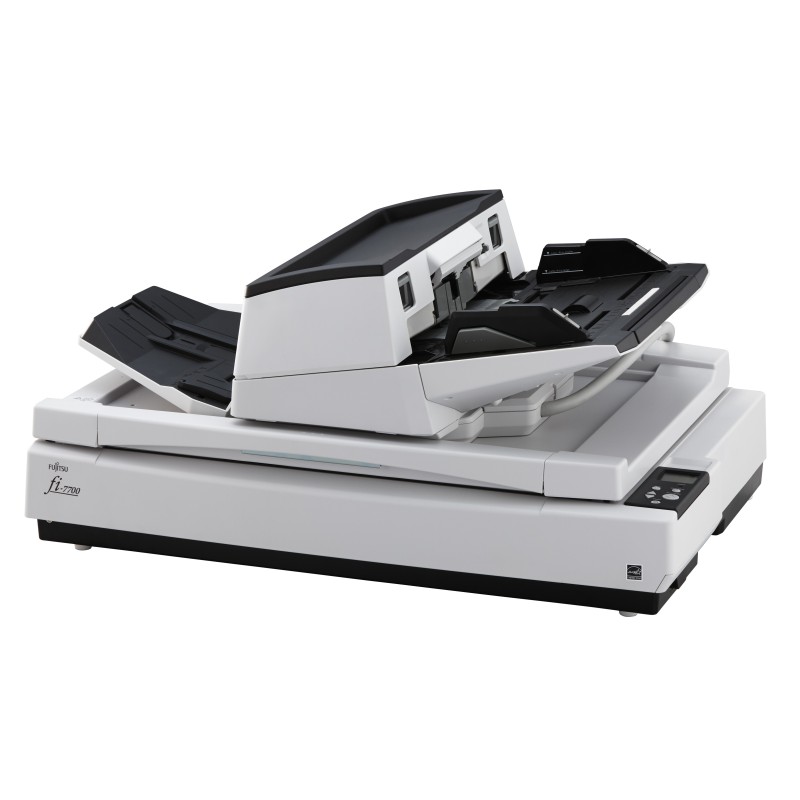

Ricoh fi-7700. Maximum scan size: 12 x 220" (304.8 x 5588 mm), Optical scanning resolution: 600 x 600 DPI, Output color depth: 24 bit. Scanner type: Flatbed & ADF scanner, Product color: Black, White, Display: LCD. Sensor type: Triple CCD, Daily duty cycle (max): 30000 pages, Light source: White LED (6x). Auto document feeder (ADF) input capacity: 300 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Envelopes, Plain paper, Plastic Card, Thin paper, ISO A-series sizes (A0...A9): A3, A3+, A4, A5, A6, A7, A8
| Maximum scan size | 12 x 220" (304.8 x 5588 mm) |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Color scanning | Yes |
| Output color depth | 24 bit |
| Output grayscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 100 ppm |
| ADF scan speed (color, A4) | 100 ppm |
| Flatbed scan speed (b/w, A4) | 0.6 sec/page |
| Flatbed scan speed (b/w, A3) | 0.6 sec/page |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (color, A4) | 200 ipm |
| Black/white scanning color modes | Grayscale, Monochrome |
| Scanner type | Flatbed & ADF scanner |
| Built-in display | Yes |
| Product color | Black, White |
| Display | LCD |
| Sensor type | Triple CCD |
| Daily duty cycle (max) | 30000 pages |
| Light source | White LED (6x) |
| Scan drivers | ISIS, TWAIN |
| Auto document feeder (ADF) input capacity | 300 sheets |
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Envelopes, Plain paper, Plastic Card, Thin paper |
| Multi feed detection | Yes |
| ISO A-series sizes (A0...A9) | A3, A3+, A4, A5, A6, A7, A8 |
| Auto Document Feeder (ADF) media weight | 20 - 413 g/m² |
| Maximum scan area (ADF) | 12 x 17" (304.8 x 431.8 mm) |
| Minimum scan area (ADF) | 2 x 2.72" (50.8 x 69 mm) |
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Socket connector type | C5 |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | AC |
| Power consumption (typical) | 64 W |
| Power consumption (standby) | 0.35 W |
| Power consumption (off) | 0.35 W |
| Power consumption (PowerSave) | 1.7 W |
| Input voltage | 100-240 V |
| Width | 27.6" (700 mm) |
| Depth | 19.7" (500 mm) |
| Height | 13.6" (345 mm) |
| Weight | 77.2 lbs (35 kg) |
| Quantity per pack | 1 pc(s) |
| Package width | 27.4" (697 mm) |
| Package depth | 35.1" (891 mm) |
| Package height | 19.6" (499 mm) |
| Package weight | 92.6 lbs (42 kg) |
| Cables included | AC, USB |
| AC adapter included | Yes |
| ADF paper chute | Yes |
| Stacker | Yes |
| Drivers included | Yes |
| Bundled software | PaperStream IP, PaperStream Capture, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools |
| Sustainability certificates | ENERGY STAR |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Downloadable software | ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode |
| Compliance certificates | RoHS |
| Selectable background color | Yes |
| Background colors | Black, White |
| Country of origin | Indonesia |
| Pallet length | 35.8" (91 cm) |
| Pallet width | 55.9" (142 cm) |
| Harmonized System (HS) code | 8471607000 |
| Paper packaging weight | 5.29 lbs (2.4 kg) |
| Metal packaging weight | 0 oz (0 g) |
| Wood packaging weight | 0 oz (0 g) |
| Plastic packaging weight | 0.529 oz (15 g) |
| Quantity per pallet (air) | 4 pc(s) |
| Quantity per pallet (sea) | 6 pc(s) |
| Pallet height (sea) | 64.1" (162.7 cm) |
| Pallet height (air) | 45.2" (114.8 cm) |
| Cardboard packaging weight | 2.65 lbs (1.2 kg) |
| Foil packaging weight | 0.529 oz (15 g) |
| Polystyrene (EPS/EPP) packaging weight | 7.05 oz (200 g) |
| Glass packaging weight | 0 oz (0 g) |
