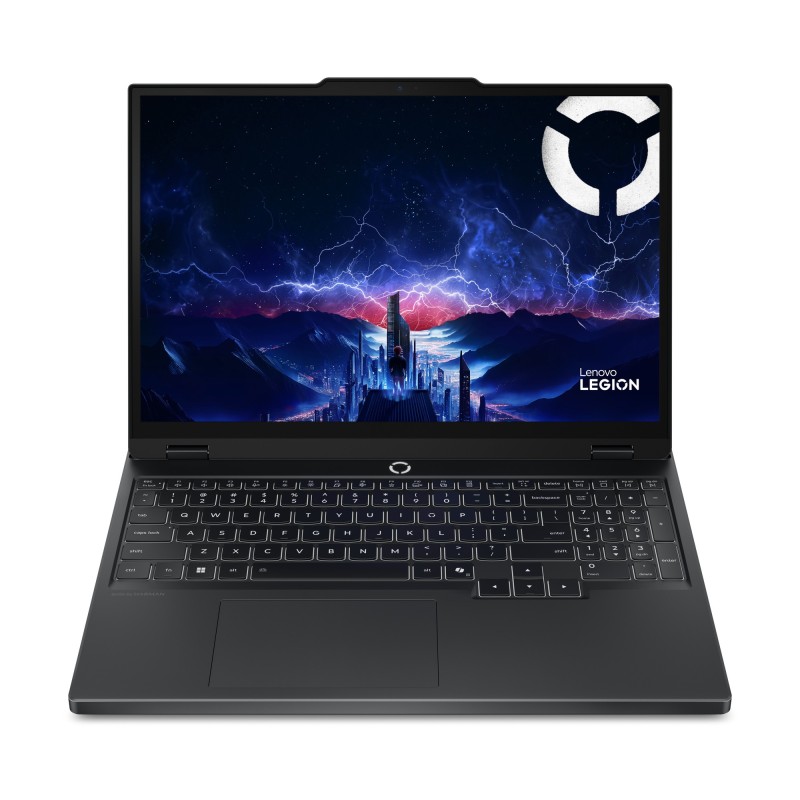

Lenovo Legion 5 15IRX10 Intel® Core™ i7 i7-14700HX Laptop 15.1" WQXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 5060 Wi-Fi

Lenovo Legion 5 15IRX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14700HX, Processor frequency: 2.1 GHz. Display diagonal: 15.1", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Home. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Eclipse Black (with White Backlit Keyboard)
Display back cover material	Aluminum
Display diagonal	15.1"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	1000 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	165 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700HX
Processor frequency	2.1 GHz
Processor generation	Intel® Core™ i7 (14th gen)
Processor cores	20
Processor threads	28
Processor boost frequency	5.5 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Processor base power	55 W
Maximum turbo power	157 W
Internal memory	16 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
On-board graphics card model	Intel® UHD Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Total Graphics Power (TGP)	115 W
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
Motherboard chipset	Intel HM770
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	White
Keyboard language	German
Operating system installed	Windows 11 Home
Operating system language	German
Trial software	Office
Battery capacity	60 Wh
USB Type-C charging port	Yes
USB Type-C required charging power (min)	95 W
USB Type-C required charging power (max)	100 W
AC adapter power	245 W
USB Power Delivery	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Certification	ENERGY STAR,EPEAT Gold,RoHS
Weight	4.19 lbs (1.9 kg)
Width	13.6" (344.9 mm)
Depth	10.1" (255.3 mm)
Height (front)	0.787" (2 cm)
Height (rear)	0.846" (2.15 cm)
AC adapter included	Yes
