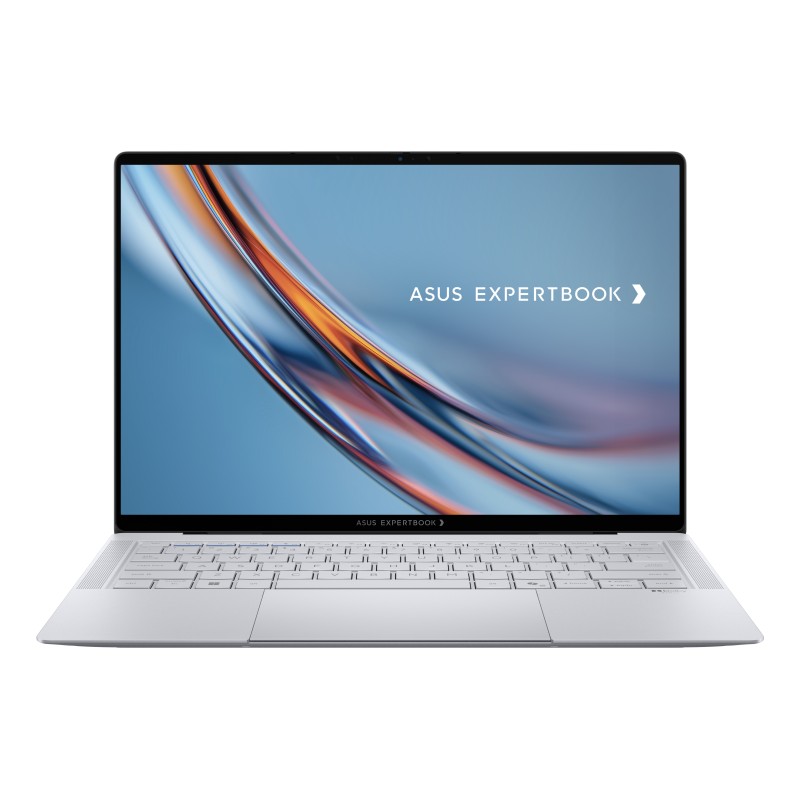

ASUS ExpertBook Ultra B9406CAA-TH1492X Copilot+ PC Intel Core Ultra X7 358H Laptop 14" Touchscreen WQXGA+ 32 GB LPDDR5x-SDRAM

ASUS ExpertBook Ultra B9406CAA-TH1492X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra X7, Processor model: 358H. Display diagonal: 14", HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Operating system installed: Windows 11 Pro. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	Morn Grey
Housing material	Aluminum, Magnesium
Market positioning	Work
Introduction year	2026
Display diagonal	14"
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	WQXGA+
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Matt
Display glass type	Corning Glass
Gorilla Glass version	Gorilla Glass Victus
Display brightness	700 cd/m²
Maximum display brightness (HDR)	1600 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000
Processor family	Intel Core Ultra X7
Processor manufacturer	Intel
Processor model	358H
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cores	16
Processor threads	16
Processor boost frequency	4.8 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Processor base power	25 W
Maximum turbo power	80 W
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	122 TOPs
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc B390
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Ray tracing acceleration	Yes
Audio system	Dolby Atmos
Number of built-in speakers	6
Built-in microphone	Yes
Front camera	Yes
Front camera resolution (numeric)	5 MP
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Microsoft Copilot	Yes
Battery capacity	70 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
USB Type-C charging port	Yes
USB Type-C required charging power (min)	80 W
USB Type-C required charging power (max)	90 W
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.5 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Fingerprint reader	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Compliance certificates	REACH
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC) Mix, TCO
Weight	2.4 lbs (1.09 kg)
Width	12.2" (310.9 mm)
Depth	8.38" (212.8 mm)
Height (front)	0.429" (1.09 cm)
Height (rear)	0.646" (1.64 cm)
Package width	15.4" (390 mm)
Package depth	5.03" (127.8 mm)
Package height	11.4" (290 mm)
