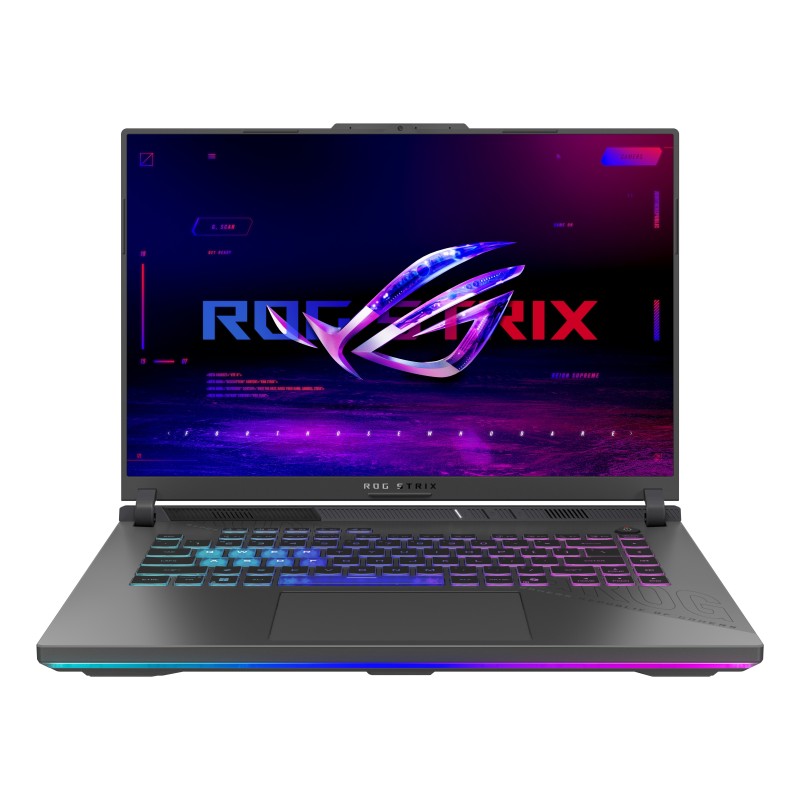

ASUS ROG Strix G16 G614FR-TS230W AMD Ryzen™ 9 9955HX Laptop 16" WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti

ASUS ROG Strix G16 G614FR-TS230W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 9, Processor model: 9955HX, Processor frequency: 2.5 GHz. Display diagonal: 16", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M. Operating system installed: Windows 11 Home. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	Eclipse Gray
Housing material	Plastic
Display back cover material	Plastic
Market positioning	Gaming
Introduction year	2025
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	3 ms
Maximum refresh rate	300 Hz
Processor family	AMD Ryzen™ 9
Processor manufacturer	AMD
Processor model	9955HX
Processor frequency	2.5 GHz
Processor generation	AMD Ryzen 9000 Series
Processor cores	16
Processor threads	32
Processor boost frequency	5.4 GHz
Processor cache type	L2 & L3
L3 cache	64 MB
L2 cache	16 MB
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
On-board graphics card model	AMD Radeon 610M
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon Graphics
Total Graphics Power (TGP)	140 W
NVIDIA G-SYNC	Yes
Audio system	Smart Amp
Number of built-in speakers	2
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB4 Gen 3×2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	Per-key RGB
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Battery capacity	90 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Fast charging	Yes
Fast charging time (50%)	30 min
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	100 W
AC adapter power	280 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	14 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User
Weight	5.51 lbs (2.5 kg)
Width	13.9" (354 mm)
Depth	10.4" (264 mm)
Height (front)	0.89" (2.26 cm)
Height (rear)	1.2" (3.04 cm)
Package width	13.2" (335 mm)
Package depth	4.17" (106 mm)
Package height	16.5" (420 mm)
