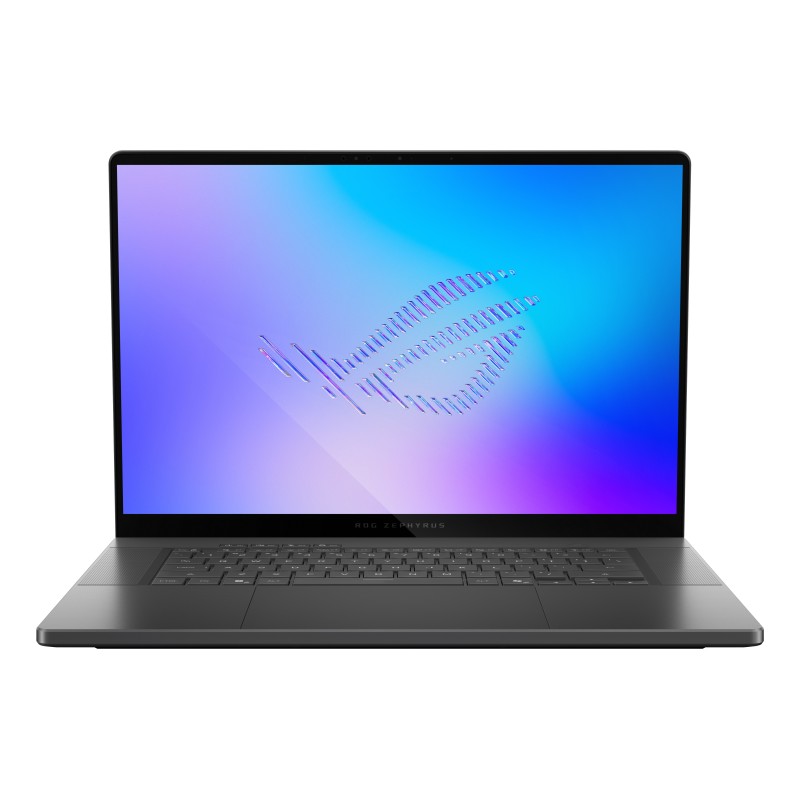

ASUS ROG Zephyrus G16 GU606AX-TB002W Intel Core Ultra 9 386H Laptop 16" 2.5K 64 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA GeForce RTX

ASUS ROG Zephyrus G16 GU606AX-TB002W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 16", HD type: 2.5K, Display resolution: 2560 x 1600 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Operating system installed: Windows 11 Home. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	Eclipce Grey
Housing material	Aluminum
Display back cover material	Plastic
Market positioning	Gaming
Introduction year	2026
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	2.5K
Panel type	OLED
Native aspect ratio	16:10
Anti-glare screen	Yes
Maximum display brightness (HDR)	1100 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	386H
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cores	16
Processor threads	16
Processor boost frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor base power	25 W
Maximum turbo power	80 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	50 TOPs
GPU performance up to	77 TOPs
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Memory form factor	On-board
Memory channels	Dual-channel
Total storage capacity	2 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5090
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	24 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
NVIDIA G-SYNC	Yes
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	1-zone RGB
Copilot key	Yes
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers; McAfee 30 days free trial
Bundled software	Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Battery capacity	90 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Fast charging	Yes
Fast charging time (50%)	30 min
USB Type-C charging port	Yes
AC adapter power	250 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.5 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Face recognition	Yes
Windows Hello	Yes
Password protection	Yes
Password protection type	BIOS, User
Weight	4.3 lbs (1.95 kg)
Width	13.9" (354 mm)
Depth	9.69" (246 mm)
Height (front)	0.587" (1.49 cm)
Height (rear)	0.705" (1.79 cm)
AC adapter included	Yes
