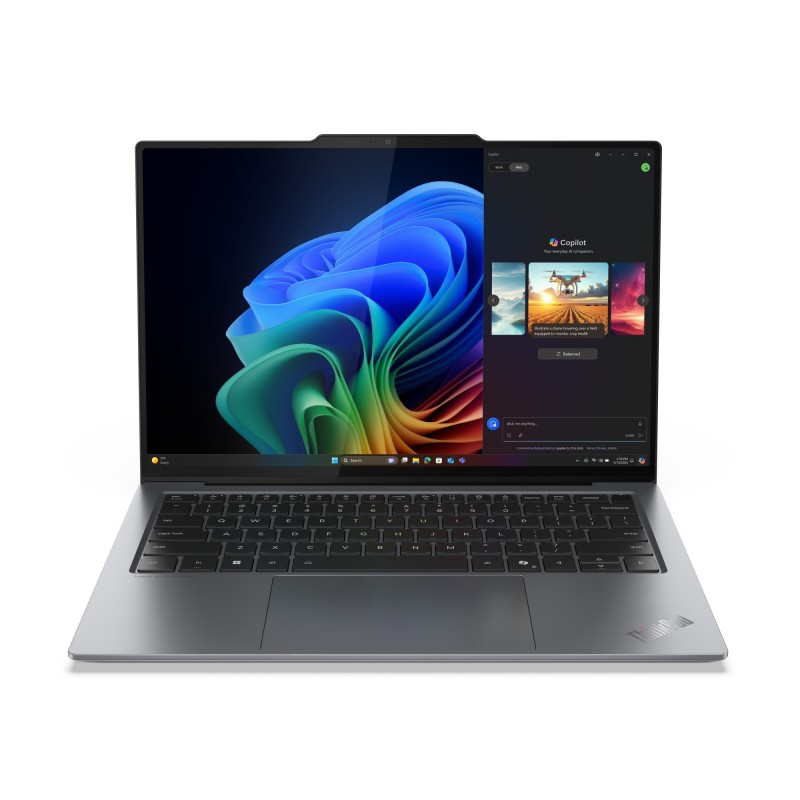

Lenovo ThinkPad X9-14 Gen 1 Copilot+ PC Intel Core Ultra 5 228V Laptop 14" WUXGA 32 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7

Lenovo ThinkPad X9-14 Gen 1 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 228V. Display diagonal: 14", HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Pro. Product color: Gray. Weight: 2.67 lbs (1.21 kg)

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	Grey
Housing material	Aluminum
Display diagonal	14"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	100000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 500, Dolby Vision
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	228V
Processor generation	Intel Core Ultra (Series 2)
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor base power	17 W
Maximum turbo power	37 W
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Memory form factor	On-board
Memory channels	Dual-channel
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 130V
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio chip	Cirrus Logic CS42L43
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE201
WLAN controller manufacturer	Intel
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Motherboard chipset	Intel SoC
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system language	German
Microsoft Copilot	Yes
Bundled software	Intel Connectivity Performance Suite
Battery capacity	55 Wh
Battery technology	Lithium Polymer (LiPo)
Fast charging	Yes
USB Type-C charging port	Yes
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Compliance certificates	RoHS
Certification	ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 10.0 Intel Evo Platform Eyesafe Certified 2.0 MIL-STD-810H military test passed
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight	2.67 lbs (1.21 kg)
Width	12.3" (311.8 mm)
Depth	8.36" (212.3 mm)
Height	0.676" (17.2 mm)
Height (front)	0.264" (6.7 mm)
Height (rear)	0.677" (1.72 cm)
AC adapter included	Yes
