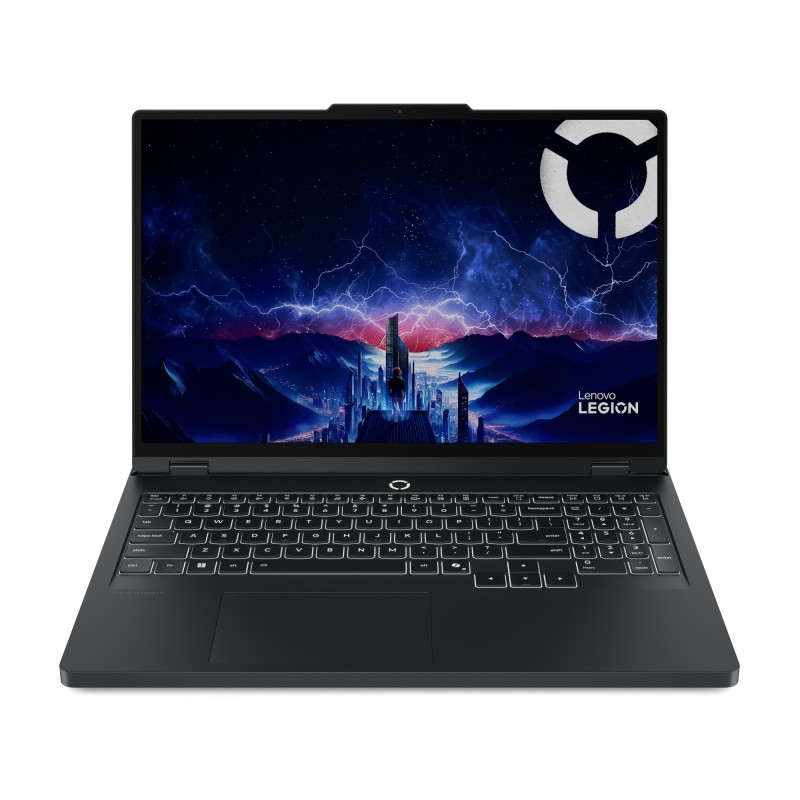

Lenovo Legion Pro 5 16IAX10H Intel Core Ultra 9 275HX Laptop 16" WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti

Lenovo Legion Pro 5 16IAX10H. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 16", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070 Ti. Operating system installed: Windows 11 Home. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Eclipse Black
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Display back cover material	Aluminum
Display diagonal	16"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	OLED
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	500 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	275HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
On-board graphics card model	Intel® Graphics
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Audio chip	Realtek ALC3306
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
Motherboard chipset	Intel HM870
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	24-zone RGB
Keyboard language	German
Operating system installed	Windows 11 Home
Operating system language	German
Trial software	Office
Battery capacity	80 Wh
USB Type-C charging port	Yes
USB Type-C required charging power (min)	65 W
USB Type-C required charging power (max)	100 W
AC adapter power	300 W
USB Power Delivery	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Certification	ENERGY STAR,RoHS
Weight	5.34 lbs (2.42 kg)
Width	14.3" (364.4 mm)
Depth	10.6" (268.1 mm)
Height (front)	0.854" (2.17 cm)
Height (rear)	1.02" (2.6 cm)
AC adapter included	Yes
