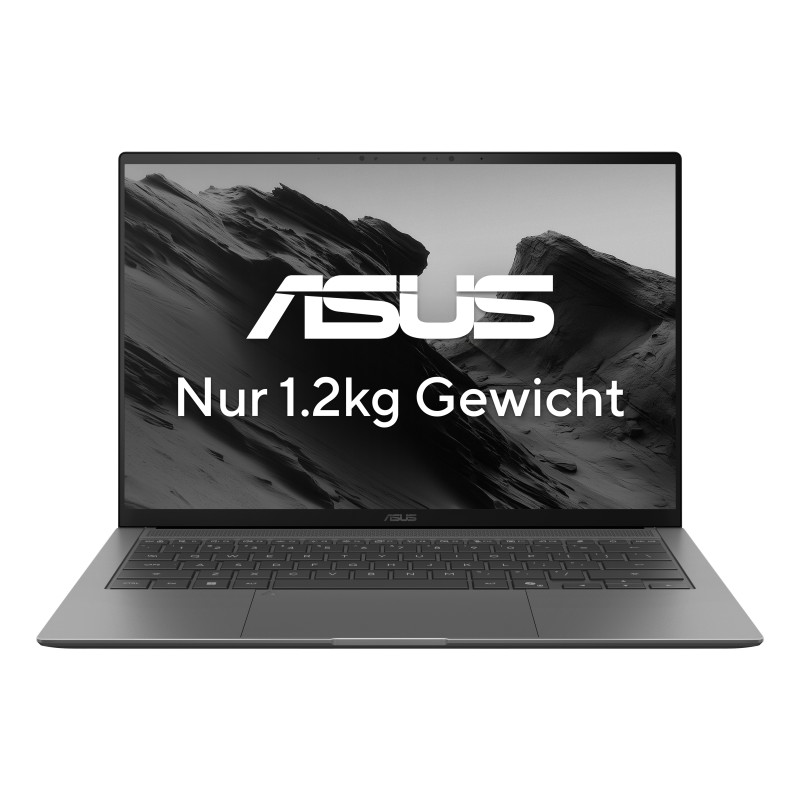

ASUS Zenbook S14 UX5406AA-SU237W Copilot+ PC Intel Core Ultra 9 386H Laptop 14" Touchscreen 3K 32 GB LPDDR5x-SDRAM 1 TB SSD

ASUS Zenbook S14 UX5406AA-SU237W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 14", HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Home. Product color: Gray

Product type	Laptop
Product color	Gray
Form factor	Clamshell
Color name	3G, Antrim Gray
Housing material	Aluminum
Market positioning	Home
Certified refurbished	No
Display diagonal	14"
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	3K
Panel type	OLED
Display number of colors	1.07 billion colors
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	500 cd/m²
Maximum display brightness (HDR)	1100 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR True Black 1000
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	386H
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cores	16
Processor threads	16
Processor boost frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	18 MB
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Audio system	Smart Amp
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Repairability index	9.4
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Pre-installed software	StoryCube\nMyASUS\nScreenXpert\nGlideX
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Bundled software	Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Battery capacity	77 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
USB Type-C charging port	Yes
USB Type-C required charging power (min)	45 W
USB Type-C required charging power (max)	65 W
AC adapter power	68 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.4 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Compliance certificates	RoHS, REACH
Certification	US MIL-STD 810H
Sustainability certificates	ENERGY STAR
Weight	2.65 lbs (1.2 kg)
Width	12.2" (310.3 mm)
Depth	8.45" (214.7 mm)
Height (front)	0.469" (1.19 cm)
Height (rear)	0.508" (1.29 cm)
AC adapter included	No
Accessories included	* Included accessories vary according to country and territory. Please check with your local ASUS retailer for details.
I/O ports	1x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)\n2x Thunderbolt™ 4 with support for display / power delivery (data speed up to 40Gbps), 1x HDMI 2.1 TMDS\n1x 3.5mm Combo Audio Jack
Expansion slots	1x M.2 2280 PCIe 4.0x4
