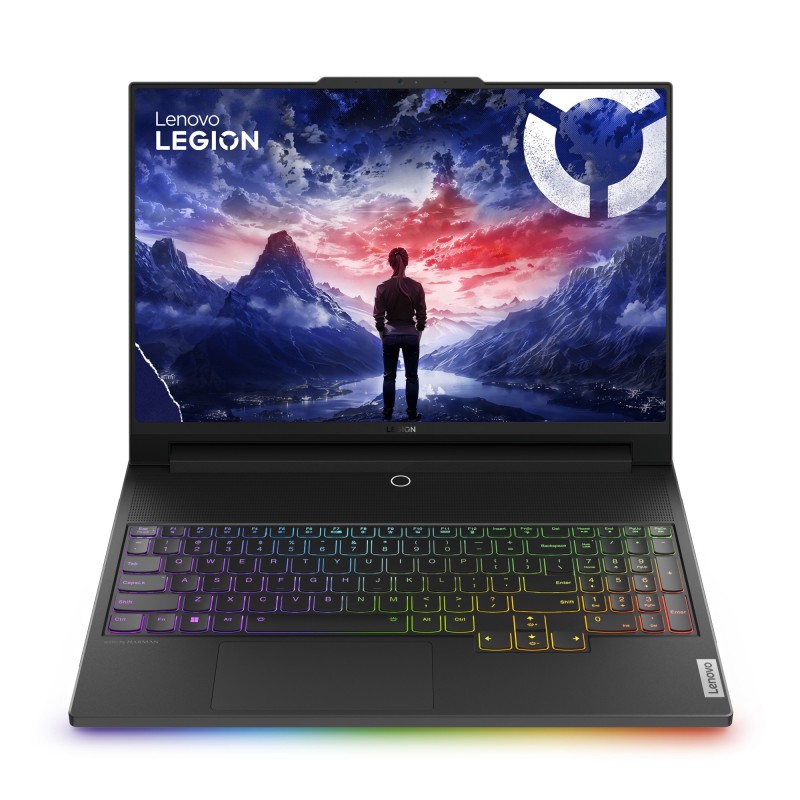

Lenovo Legion 9 18IAX10 Intel Core Ultra 9 275HX Laptop 18" WQUXGA 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7

Lenovo Legion 9 18IAX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 18", HD type: WQUXGA, Display resolution: 3840 x 2400 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Eclipse Black
Housing material	Aluminum
Display diagonal	18"
Display resolution	3840 x 2400 pixels
Touchscreen	No
HD type	WQUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	520 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Maximum refresh rate	240 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, DisplayHDR 400
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	275HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	24
Processor threads	24
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	64 GB
Maximum internal memory	192 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	4x SO-DIMM
Total storage capacity	2 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5090
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	24 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Audio chip	Realtek ALC3306
Number of built-in speakers	6
Built-in microphone	Yes
Number of microphones	2
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.4
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
Motherboard chipset	Intel HM870
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	Per-key RGB
Keyboard language	German
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Trial software	Office
Battery capacity	99.9 Wh
USB Type-C charging port	Yes
AC adapter power	400 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Fingerprint reader	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certification	RoHS
Weight	7.72 lbs (3.5 kg)
Width	15.9" (403 mm)
Depth	11.7" (296.9 mm)
Height (front)	0.941" (2.39 cm)
Height (rear)	1.1" (2.79 cm)
AC adapter included	Yes
