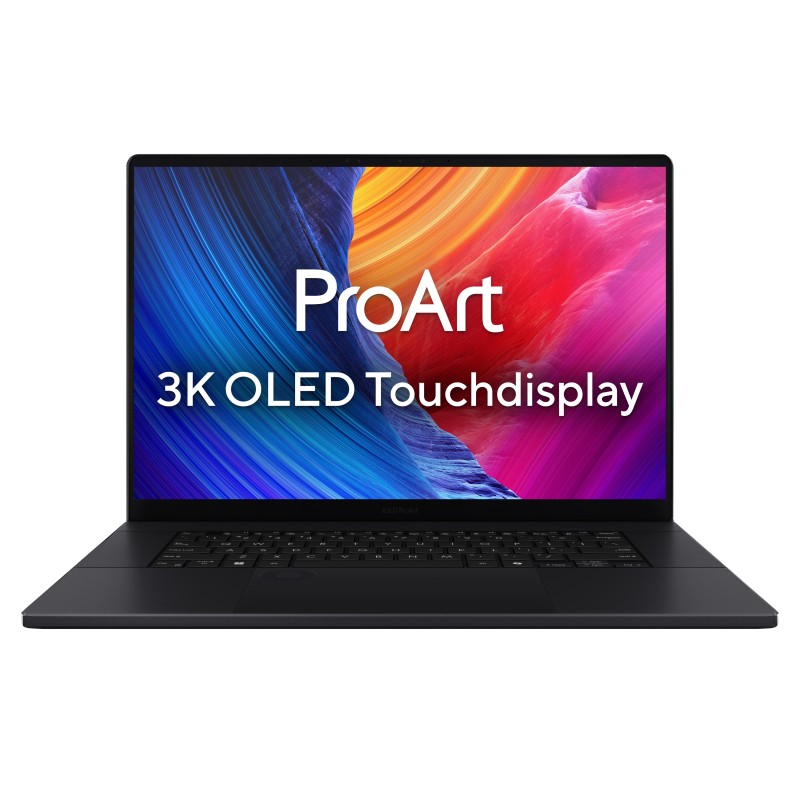

ASUS ProArt P16 H7606WP-RJ090W Copilot+ PC AMD Ryzen AI 9 HX 370 Laptop 16" Touchscreen 3K 32 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA®

ASUS ProArt P16 H7606WP-RJ090W Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9 HX, Processor model: 370, Processor frequency: 2 GHz. Display diagonal: 16", HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. Operating system installed: Windows 11 Home. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	3K, Nano Black
Housing material	Aluminum
Market positioning	Performance
Introduction year	2025
Display diagonal	16"
Display resolution	2880 x 1800 pixels
Touchscreen	Yes
HD type	3K
Panel type	OLED
Display number of colors	1.07 billion colors
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	500 cd/m²
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	0.2 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500
Processor family	AMD Ryzen AI 9 HX
Processor manufacturer	AMD
Processor model	370
Processor frequency	2 GHz
Processor generation	AMD Ryzen AI 300 Series
Processor cores	12
Processor threads	24
Processor boost frequency	5.1 GHz
Processor cache	24 MB
Processor cache type	L2 & L3
L3 cache	24 MB
L2 cache	12 MB
Copilot+ PC	Yes
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	80 TOPs
NPU performance up to	50 TOPs
Internal memory	32 GB
Maximum internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Total storage capacity	2 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce RTX™ 5070 Laptop GPU
On-board graphics card model	AMD Radeon Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3×2 ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad + DialPad
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Microsoft Copilot	Yes
Pre-installed software	StoryCube\nMuseTree\nCapCut\nASUS Recovery\nMyASUS\nProArt Creator Hub\nScreenXpert\nGlideX
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Bundled software	Xbox Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Battery capacity	90 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Removable battery	No
USB Type-C charging port	Yes
AC adapter power	200 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Power Delivery	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Compliance certificates	RoHS, REACH
Certification	US MIL-STD 810H
Sustainability certificates	ENERGY STAR
Weight	4.08 lbs (1.85 kg)
Width	14" (354.9 mm)
Depth	9.72" (246.9 mm)
Height (front)	0.587" (1.49 cm)
Height (rear)	0.681" (1.73 cm)
Package width	22.4" (568 mm)
Package depth	7.44" (189 mm)
Package height	17.1" (435 mm)
Package weight	4.63 lbs (2.1 kg)
AC adapter included	Yes
Accessories included	Backpack, * Included accessories vary according to country and territory. Please check with your local ASUS retailer for details.
I/O ports	1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps)\n1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps)\n2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps), 1x HDMI 2.1 FRL\n1x 3.5mm Combo Audio Jack\n1x DC-in, SD Express 7.0 card reader
Expansion slots	1x M.2 2280 PCIe 4.0x4 + 1x M.2 2280 PCIe 4.0x2
