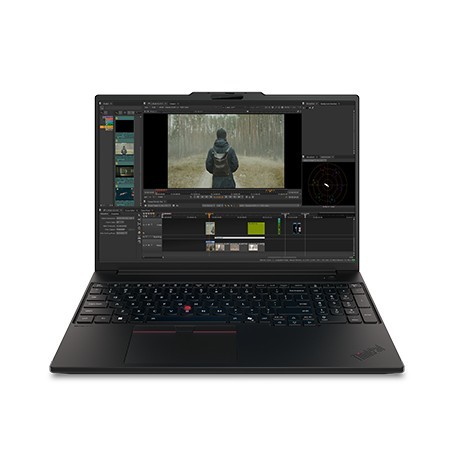

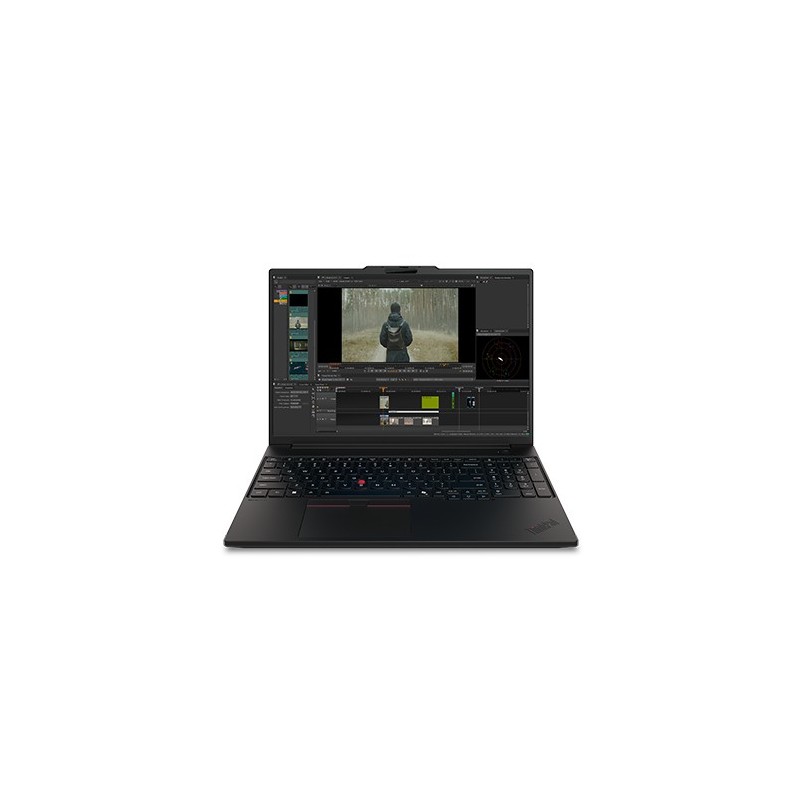

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot + PC Copilot+ PC Intel Core Ultra 7 356H Mobile workstation 16" Touchscreen WUXGA 32

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot + PC. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 356H. Display diagonal: 16", HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Acrylonitrile styrene acrylate (ASA)
Display back cover material	Aluminum
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1200:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	356H
Processor generation	Intel® Core™ Ultra (Series 3)
Processor cores	16
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Processor base power	25 W
Maximum turbo power	80 W
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs
Internal memory	32 GB
Maximum internal memory	96 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7467 MHz
Memory form factor	LPCAMM2
Memory channels	Dual-channel
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 1000 Blackwell
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Ray tracing acceleration	Yes
Audio chip	Realtek ALC722-CG
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Motherboard chipset	Intel SoC
Numeric keypad	Yes
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Bundled software	Lenovo AI Now
Battery capacity	90 Wh
Battery technology	Lithium-Ion (Li-Ion)
Fast charging	Yes
USB Type-C charging port	Yes
AC adapter power	100 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, SSD, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Certification	ENERGY STAR® 9.0 EPEAT™ Gold Registered RoHS compliant TCO Certified, generation 10
Weight	3.95 lbs (1.79 kg)
Width	14.1" (357.9 mm)
Depth	9.76" (247.9 mm)
Height (front)	0.453" (1.15 cm)
Height (rear)	0.713" (1.81 cm)
AC adapter included	Yes
