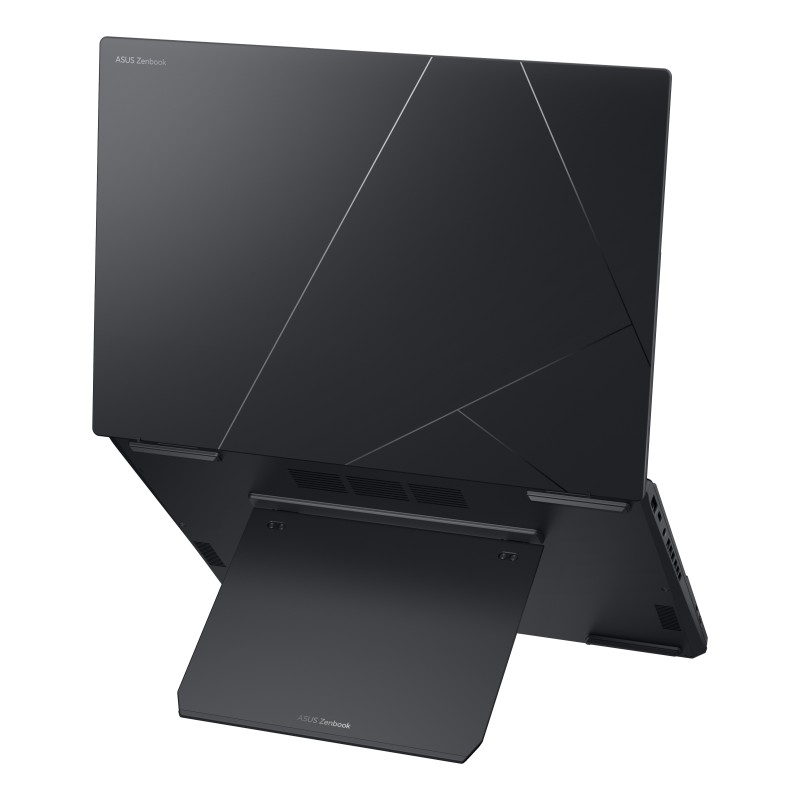

ASUS Zenbook Duo UX8406CA-QL263W Intel Core Ultra 9 285H Hybrid (2-in-1) 14" Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD

ASUS Zenbook Duo UX8406CA-QL263W. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 14", HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product color: Gray

Product type	Hybrid (2-in-1)
Product color	Gray
Form factor	Convertible (Detachable)
Color name	Inkwell Gray
Housing material	Aluminum, Magnesium
Market positioning	Home
Introduction year	2024
Display diagonal	14"
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	OLED
Display number of colors	1.07 billion colors
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	400 cd/m²
Maximum display brightness (HDR)	550 cd/m²
Display diagonal (metric)	14" (35.6 cm)
RGB color space	DCI-P3
Color gamut	100%
Low Blue Light technology	Yes
Display response rise/fall	0.2 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000000:1
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	HDR True Black 500
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	285H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	16
Processor threads	16
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.9 GHz
Efficient-core base frequency	2.7 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache	24 MB
Processor base power	45 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	13 TOPs
GPU performance up to	77 TOPs
Internal memory	16 GB
Maximum internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc 140T
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio system	Smart Amp
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Repairability index	9.4
Numeric keypad	No
Pointing device	Touchpad
Keyboard layout	QWERTZ
Keyboard language	German
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Battery capacity	75 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery life (max)	8 h
USB Type-C charging port	Yes
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Sustainability certificates	ENERGY STAR, EPEAT Gold
Weight	3.64 lbs (1.65 kg)
Width	12.3" (313.5 mm)
Depth	8.58" (217.9 mm)
Height (front)	0.575" (1.46 cm)
Height (rear)	0.783" (1.99 cm)
Package width	18" (456 mm)
Package depth	4.02" (102 mm)
Package height	11.2" (284 mm)
Package weight	4.19 lbs (1.9 kg)
AC adapter included	Yes
