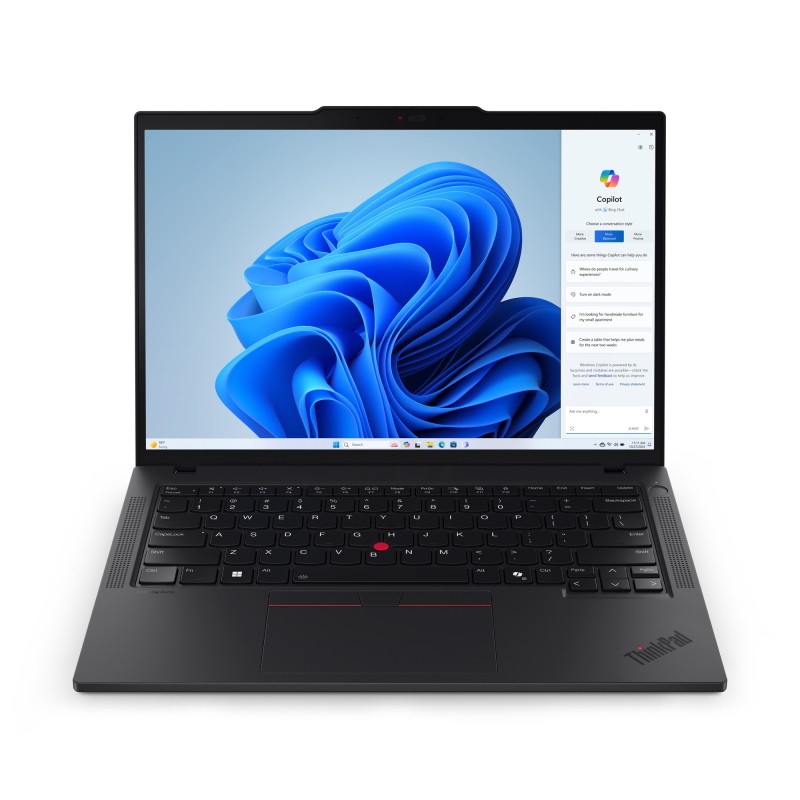

Lenovo ThinkPad T14 Gen 5 (Intel) Intel Core Ultra 5 135U Laptop 14" Touchscreen WUXGA 16 GB DDR5-SDRAM 256 GB SSD Wi-Fi 6E

Lenovo ThinkPad T14 Gen 5 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 135U. Display diagonal: 14", HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Housing material	Glass fiber, Polycarbonate (PC)
Display diagonal	14"
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1500:1
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	135U
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cores	12
Processor threads	14
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Low Power Efficient-core Max Turbo Frequency	2.1 GHz
Performance-core base frequency	1.6 GHz
Efficient-core base frequency	1.1 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	BGA 2049
Processor base power	15 W
Maximum turbo power	57 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to	22 TOPs
NPU performance up to	11 TOPs
GPU performance up to	8 TOPs
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel
Total storage capacity	256 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Motherboard chipset	Intel SoC
Numeric keypad	No
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Bundled software	Intel Connectivity Performance Suite
Battery capacity	52.5 Wh
Battery technology	Lithium Polymer (LiPo)
Fast charging	Yes
USB Type-C charging port	Yes
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Compliance certificates	RoHS
Certification	ErP Lot 6/26 MIL-STD-810H
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight	3.04 lbs (1.38 kg)
Width	12.4" (315.9 mm)
Depth	8.81" (223.7 mm)
Height	0.697" (17.7 mm)
AC adapter included	Yes
Sustainability compliance	Yes
