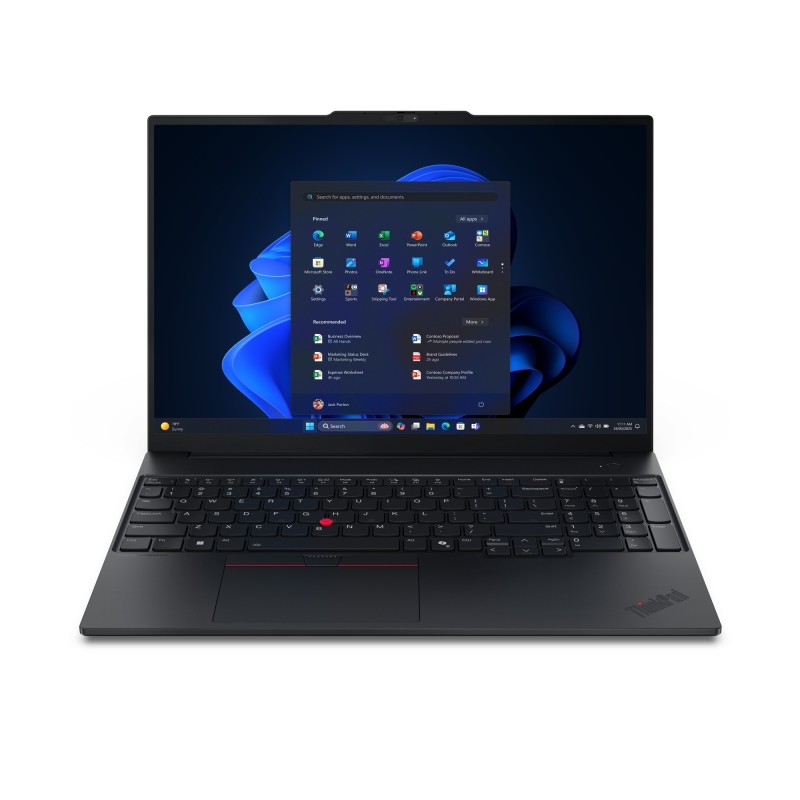

Lenovo ThinkPad E16 Gen 3 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 225U. Display diagonal: 16", HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product color: Black. Weight: 3.59 lbs (1.63 kg)
| Product type | Laptop |
| Product color | Black |
| Form factor | Clamshell |
| Color name | Black |
| Housing material | Aluminum |
| Display back cover material | Aluminum |
| Market positioning | Business |
| Display diagonal | 16" |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB color space | NTSC |
| Color gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 800:1 |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Processor model | 225U |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.4 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 12 TOPs |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Card reader integrated | No |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| Audio chip | Senary SN6147 |
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Harman Kardon |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| Motherboard chipset | Intel SoC |
| Numeric keypad | Yes |
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Full-size keyboard | Yes |
| Keyboard language | German |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | German |
| Battery capacity | 64 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| USB Type-C charging port | Yes |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 120000" (3048 m) |
| Compliance certificates | RoHS |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP |
| Weight | 3.59 lbs (1.63 kg) |
| Width | 14" (356 mm) |
| Depth | 9.8" (249 mm) |
| Height (front) | 0.398" (1.01 cm) |
| Height (rear) | 0.673" (1.71 cm) |
| AC adapter included | Yes |
