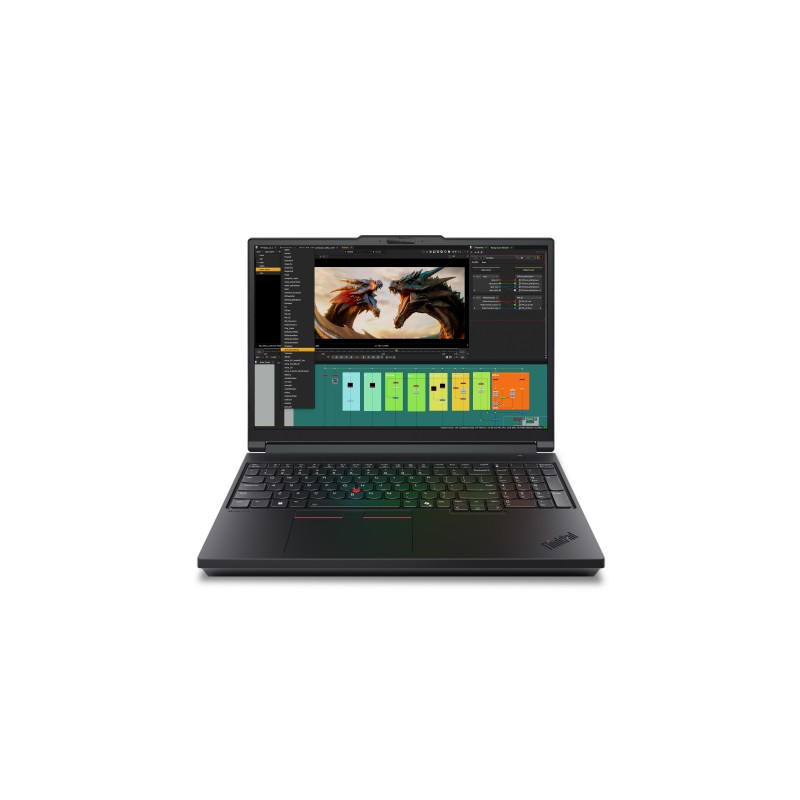

Lenovo ThinkPad P16 Gen 3 Intel Core Ultra 7 255HX Mobile workstation 16" WUXGA 64 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX PRO 2000

Lenovo ThinkPad P16 Gen 3. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255HX. Display diagonal: 16", HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Housing material	Aluminum
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1200:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	255HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	20
Processor threads	20
Processor boost frequency	5.2 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	64 GB
Maximum internal memory	192 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 5.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	Yes
Compatible memory cards	SD
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Audio chip	Cirrus Logic CS42L43
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Motherboard chipset	Intel WM880
Numeric keypad	Yes
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Bundled software	Lenovo AI Now
Battery capacity	99.9 Wh
Battery technology	Lithium-Ion (Li-Ion)
Fast charging	Yes
USB Type-C charging port	Yes
AC adapter power	180 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Compliance certificates	RoHS
Certification	TCO Certified, generation 10 MIL-STD-810H Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light
Sustainability certificates	ENERGY STAR, EPEAT Gold
Weight	5.6 lbs (2.54 kg)
Width	14.3" (362 mm)
Depth	9.92" (252 mm)
Height (front)	0.622" (1.58 cm)
Height (rear)	0.823" (2.09 cm)
AC adapter included	Yes
