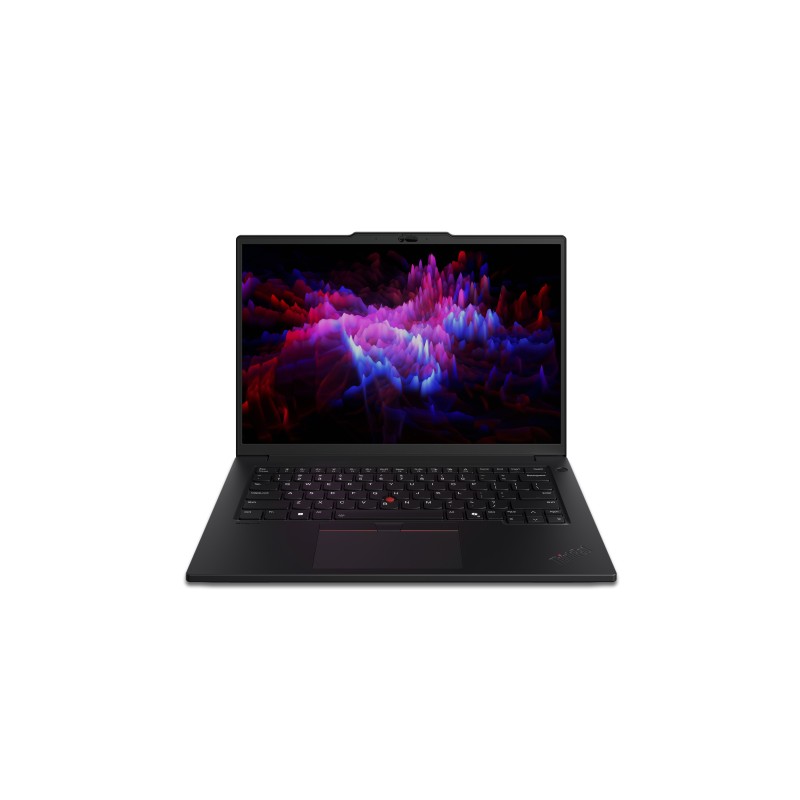

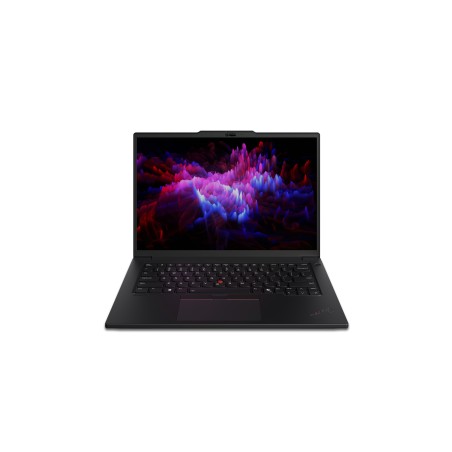

Lenovo ThinkPad P14s Gen 5 (Intel) Intel Core Ultra 7 155H Laptop 14.5" WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 500 Ada

Lenovo ThinkPad P14s Gen 5 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 14.5", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 500 Ada. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Housing material	Aluminum
Display back cover material	Aluminum
Display diagonal	14.5"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	350 cd/m²
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	90 Hz
Contrast ratio (typical)	1500:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	155H
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cores	16
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, FP32, Int8
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Internal memory	32 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 32 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	No
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX 500 Ada
On-board graphics card model	Intel Arc Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
Near Field Communication (NFC)	No
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1
Motherboard chipset	Intel SoC
Numeric keypad	No
Pointing device	ThinkPad UltraNav
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system language	German
Battery capacity	75 Wh
Battery technology	Lithium-Ion (Li-Ion)
Fast charging	Yes
USB Type-C charging port	Yes
AC adapter power	135 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	120000" (3048 m)
Compliance certificates	RoHS
Certification	ENERGY STAR 8.0 EPEAT Gold Registered RoHS compliant TCO Certified 9.0 MIL-STD-810H military test passed Eyesafe® Certified 2.0 TÜV Rheinland® Low Blue Light
Sustainability certificates	ENERGY STAR, EPEAT Gold, TCO
Weight	3.55 lbs (1.61 kg)
Width	12.8" (325.5 mm)
Depth	8.96" (227.6 mm)
Height	0.728" (18.5 mm)
AC adapter included	Yes
