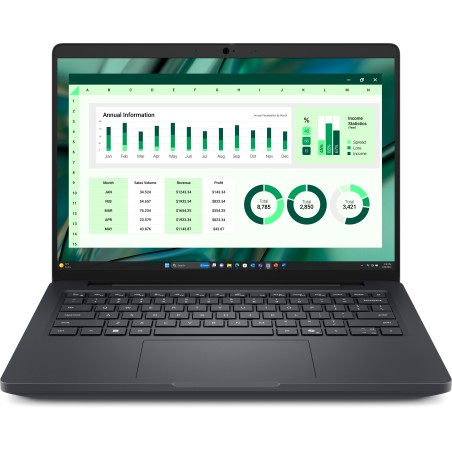

DELL Pro Max 14 MC14250 Intel Core Ultra 7 265H Mobile workstation 14" Full HD+ 16 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA RTX PRO

DELL Pro Max 14 MC14250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 265H. Display diagonal: 14", HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 500 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Color name	Magnetite
Intel® vPro™ Platform Eligibility	Yes
Display diagonal	14"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Pixel density	162 ppi
RGB color space	NTSC
Color gamut	45%
Display response rise/fall	35 ms
Maximum refresh rate	60 Hz
Contrast ratio (typical)	800:1
Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	265H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	16
Processor threads	16
Processor boost frequency	5.3 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.7 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	13 TOPs
GPU performance up to	75 TOPs
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	LPCAMM
Memory layout (slots x size)	1 x 16 GB
Memory channels	Dual-channel
Memory data transfer rate	7467 MT/s
Non-ECC	Yes
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
SSD performance class	35
M.2 SSD size	2230 (22 x 30 mm)
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 500 Blackwell
On-board graphics card model	Intel Arc 140T
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio chip	Realtek ALC3329
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE201
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
WWAN	Not installed
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes
Motherboard chipset	Intel SoC
Accelerometer	Yes
Hall sensor	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Brand specific technologies	Control Vault 3+, Express Charge Boost capable, HDR Camera
Battery capacity	72 Wh
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery voltage	15.6 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	9.52 oz (270 g)
USB Type-C charging port	Yes
USB Type-C required charging power (min)	27 W
USB Type-C required charging power (max)	65 W
AC adapter power	130 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Wedge
Fingerprint reader	Yes
Smart card reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
Weight	3.95 lbs (1.79 kg)
Width	12.3" (313 mm)
Depth	8.95" (227.3 mm)
Height (front)	0.583" (1.48 cm)
Height (rear)	0.744" (1.89 cm)
Total carbon footprint (kg of CO2e)	101
Carbon emissions, manufacturing (kg of CO2e)	72.619
Carbon emissions, logistics (kg of CO2e)	5.252
Carbon emissions, energy usage (kg of CO2e)	22.018
Carbon emissions, end-of-life (kg of CO2e)	1.01
PAIA version	GaBi version 1, 2024
AC adapter included	Yes
Cables included	AC
