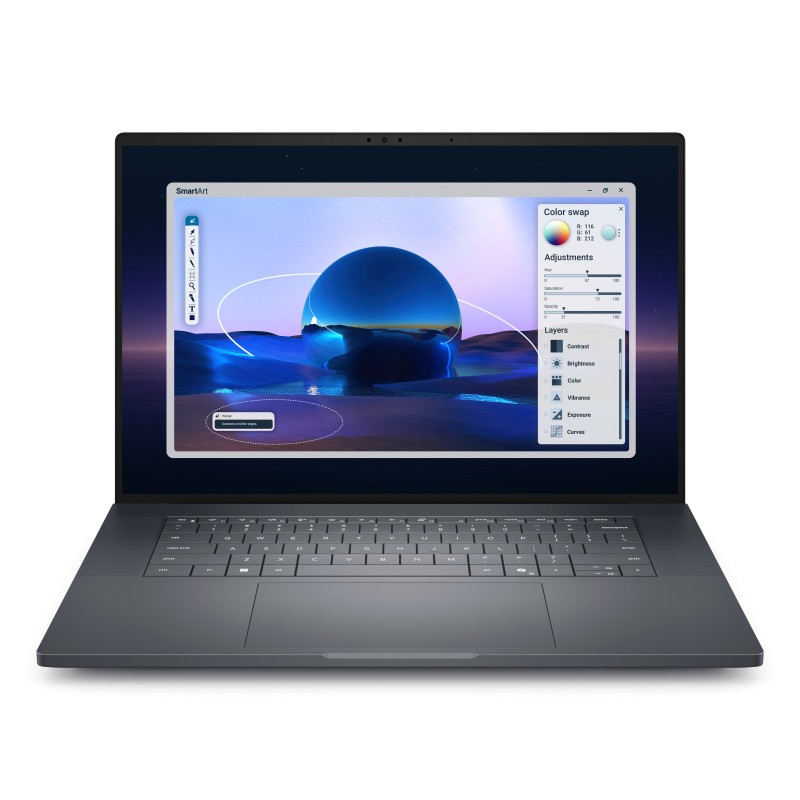

DELL Pro Max 16 Premium MA16250 Intel Core Ultra 9 285H Mobile workstation 16" Full HD+ 64 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX

DELL Pro Max 16 Premium MA16250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 16", HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Color name	Magnetite
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	142 ppi
RGB color space	DCI-P3
Color gamut	100%
Display response rise/fall	35 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1500:1
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	285H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	16
Processor threads	16
Processor boost frequency	5.4 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	2.9 GHz
Efficient-core base frequency	2.7 GHz
Low Power Efficient-core Base Frequency	1000 MHz
Processor cache	24 MB
Processor base power	45 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	99 TOPs
NPU performance up to	13 TOPs
GPU performance up to	77 TOPs
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Memory data transfer rate	8400 MT/s
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 2000 Blackwell
On-board graphics card model	Intel Arc 140T
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio chip	Cirrus Logic CS42L43
Audio system	Dolby Atmos
Number of built-in speakers	4
Built-in microphone	Yes
Front camera	Yes
Front camera resolution (numeric)	8 MP
Front camera resolution	2560 x 1440 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN controller model	Intel Wi-Fi 7 BE201
WLAN controller manufacturer	Intel
Bluetooth	Yes
WWAN	Not installed
MIMO	Yes
MIMO type	Multi User MIMO
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Motherboard chipset	Intel SoC
Ambient light sensor	Yes
Accelerometer	Yes
Hall sensor	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Brand specific technologies	Express Charge Boost capable
Battery capacity	96 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery voltage	11.7 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	12.4 oz (351 g)
USB Type-C charging port	Yes
USB Type-C required charging power (min)	100 W
USB Type-C required charging power (max)	100 W
AC adapter power	165 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
USB charging voltage	20,5,9,15 V
Cable lock slot	Yes
Cable lock slot type	Wedge
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight	4.83 lbs (2.19 kg)
Width	13.9" (353.8 mm)
Depth	9.46" (240.3 mm)
Height (front)	0.819" (2.08 cm)
Height (rear)	0.819" (2.08 cm)
Total carbon footprint (kg of CO2e)	175
Carbon emissions, manufacturing (kg of CO2e)	136.5
Carbon emissions, logistics (kg of CO2e)	6.475
Carbon emissions, energy usage (kg of CO2e)	30.1
Carbon emissions, end-of-life (kg of CO2e)	1.93
PAIA version	GaBi version 1, 2025
AC adapter included	Yes
