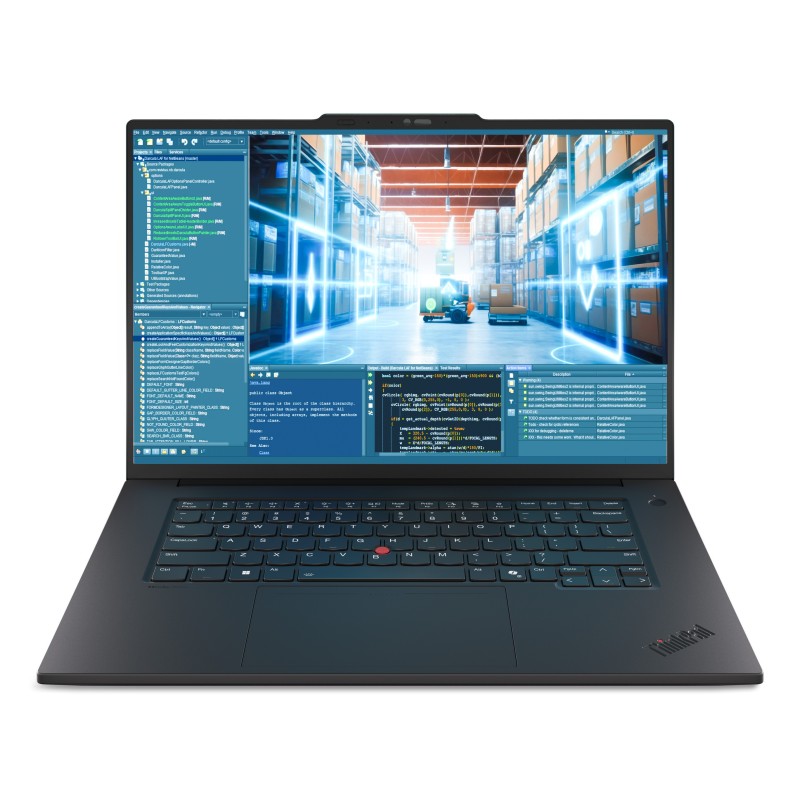

Lenovo ThinkPad P1 Gen 8. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 16", HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black
| Product type | Mobile workstation |
| Product color | Black |
| Form factor | Clamshell |
| Housing material | Aluminum |
| Display diagonal | 16" |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB color space | sRGB |
| Color gamut | 100% |
| Maximum refresh rate | 60 Hz |
| Processor family | Intel Core Ultra 7 |
| Processor manufacturer | Intel |
| Processor model | 255H |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Total processor performance up to | 96 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 74 TOPs |
| Internal memory | 64 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 7467 MHz |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX PRO 2000 Blackwell |
| On-board graphics card model | Intel Arc 140T |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Motherboard chipset | Intel SoC |
| Numeric keypad | No |
| Pointing device | ThinkPad UltraNav |
| Keyboard backlit | Yes |
| Keyboard language | German |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | German |
| Bundled software | Intel Connectivity Performance Suite + Lenovo AI Now |
| Battery capacity | 90 Wh |
| USB Type-C charging port | Yes |
| AC adapter power | 140 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
| Weight | 4.06 lbs (1.84 kg) |
| Depth | 0.374" (9.49 mm) |
| AC adapter included | Yes |
