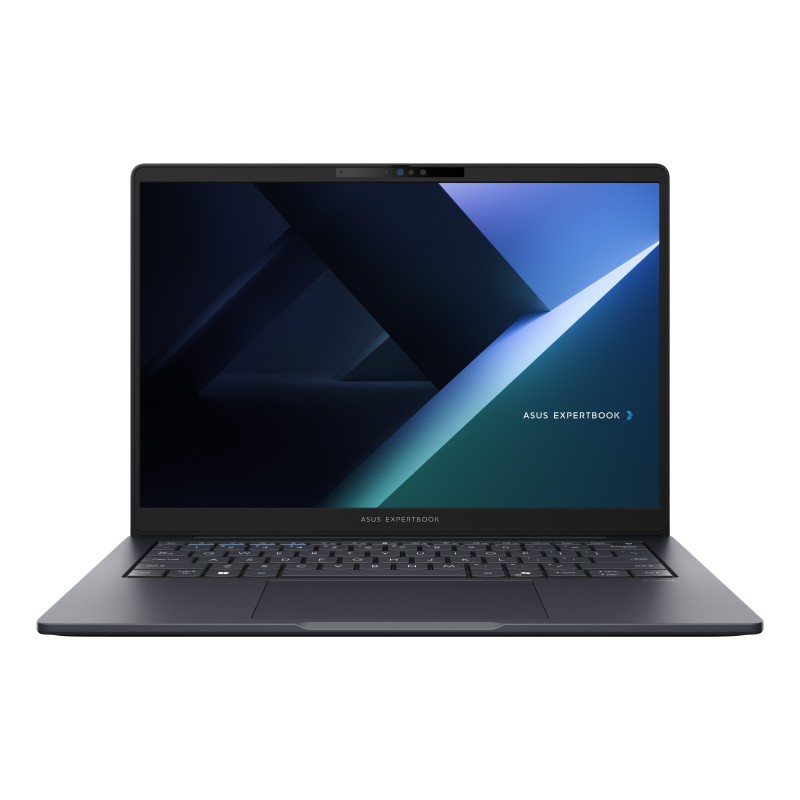

ASUS ExpertBook B5 B5405CCA-NZ0084X Intel Core Ultra 5 225H Laptop 14" WQXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 7 (802.11be)

ASUS ExpertBook B5 B5405CCA-NZ0084X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 225H. Display diagonal: 14", HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 130T. Operating system installed: Windows 11 Pro. Product color: Black. Weight: 2.98 lbs (1.35 kg)

Product type	Laptop
Product color	Black
Form factor	Clamshell
Color name	Gentle Grey
Housing material	Aluminum
Market positioning	Work
Introduction year	2025
Display diagonal	14"
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Display diagonal (metric)	14" (35.6 cm)
RGB color space	sRGB
Color gamut	100%
Maximum refresh rate	144 Hz
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	225H
Processor generation	Intel Core Ultra (Series 2)
Processor cores	14
Processor threads	14
Processor boost frequency	4.9 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.3 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	18 MB
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	83 TOPs
NPU performance up to	13 TOPs
GPU performance up to	63 TOPs
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	512 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc 130T
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Audio system	Dirac
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Numeric keypad	No
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard layout	QWERTZ
Keyboard language	German
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Battery capacity	50 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
USB Type-C charging port	Yes
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User
Compliance certificates	REACH
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold, Forest Stewardship Council (FSC) Recycled
Weight	2.98 lbs (1.35 kg)
Width	12.4" (315.1 mm)
Depth	8.93" (226.8 mm)
Height (front)	0.689" (1.75 cm)
Height (rear)	0.705" (1.79 cm)
Package width	16.9" (429 mm)
Package depth	2.56" (65 mm)
Package height	10.6" (270 mm)
Package weight	3.53 lbs (1.6 kg)
AC adapter included	Yes
