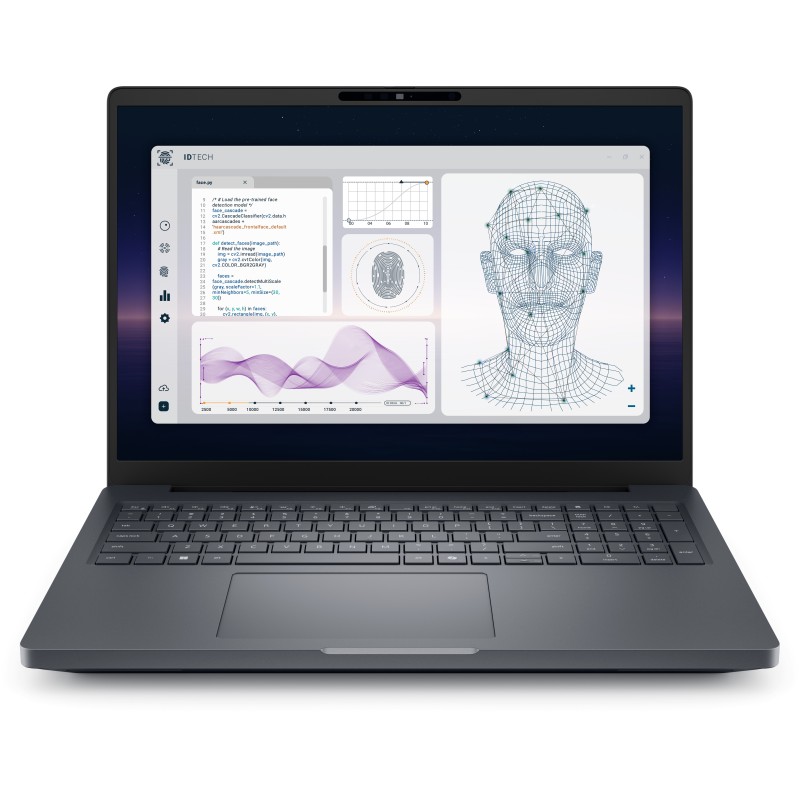

DELL Pro Max 16 Plus MB16250 Intel Core Ultra 9 285HX Mobile workstation 16" Full HD+ 64 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX PRO

DELL Pro Max 16 Plus MB16250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285HX. Display diagonal: 16", HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA RTX PRO 3000 Blackwell. Operating system installed: Windows 11 Pro. Product color: Black

Product type	Mobile workstation
Product color	Black
Form factor	Clamshell
Color name	Magnetite
Intel® vPro™ Platform Eligibility	Yes
Display diagonal	16"
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	Full HD+
Panel type	WVA
Display technology marketing name	ComfortView Plus
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	141 ppi
RGB color space	DCI-P3
Color gamut	100%
Low Blue Light technology	Yes
Display response rise/fall	35 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1500:1
Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	285HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	24
Processor threads	24
Processor boost frequency	5.5 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.8 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	64 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory form factor	CSoDIMM
Memory layout (slots x size)	2 x 32 GB
Memory slots	2x CSoDIMM
Memory channels	Dual-channel
Memory data transfer rate	6400 MT/s
Non-ECC	Yes
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Self-Encrypting Drive (SED)	Yes
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX PRO 3000 Blackwell
On-board graphics card model	Intel Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
Audio chip	Cirrus Logic CS42L43
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
Front camera	Yes
Front camera resolution (numeric)	8.29 MP
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max)	5760 Mbit/s
WLAN controller model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,2500,100 Mbit/s
Bluetooth	Yes
Near Field Communication (NFC)	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Ambient light sensor	Yes
Accelerometer	Yes
Hall sensor	Yes
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard language	German
Copilot key	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Brand specific technologies	Control Vault 3+, Express Charge Boost capable, HDR Camera, TNR
Battery capacity	96 Wh
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery voltage	11.7 V
Battery recharge time	3 h
Fast charging	Yes
USB Type-C charging port	Yes
USB Type-C required charging power (min)	90 W
AC adapter power	280 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery	Yes
Cable lock slot	Yes
Cable lock slot type	Noble
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight	5.62 lbs (2.55 kg)
Width	14.2" (360 mm)
Depth	10.2" (258.6 mm)
Height (front)	0.681" (1.73 cm)
Height (rear)	0.748" (1.9 cm)
AC adapter included	Yes
