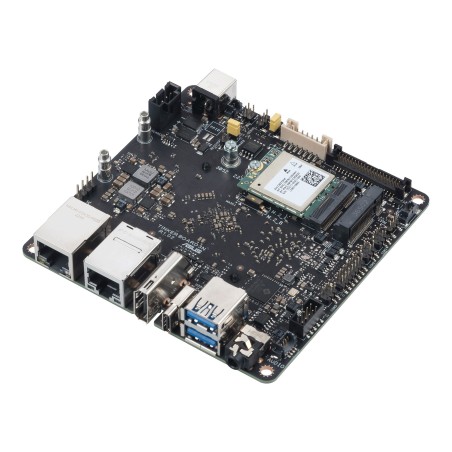

ASUS Tinker Board 3N PLUS development board Rockchip RK3568

325A11FD

ASUS Tinker Board 3N PLUS, Rockchip, Rockchip RK3568, 4 GB, 4096 MB, eMMC, 32 GB

€295.00
Tax included
Quantity
Articolo in magazzino

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Buy it now and receive it between 9/24/25 and 9/29/25 with Corriere Espresso

Description
ASUS Tinker Board 3N PLUS. Processor manufacturer: Rockchip, Processor model: Rockchip RK3568. Maximum internal memory: 4 GB, RAM capacity: 4096 MB, Flash memory type: eMMC. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). On-board graphics card model: Arm Mali-G52. Linux operating systems supported: Debian 11
Processor manufacturerRockchip
Processor modelRockchip RK3568
Processor cores4
64-bit computingYes
Maximum internal memory4 GB
RAM capacity4096 MB
Flash memory typeeMMC
eMMC capacity32 GB
Compatible memory cardsMicroSD (TransFlash)
Ethernet LANYes
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Headphone outYes
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
GPIO interfaceYes
I2C interfaceYes
SPI interfaceYes
USB Type-C ports quantity1
On-board graphics cardYes
On-board graphics card modelArm Mali-G52
Linux operating systems supportedDebian 11
DC input voltage12 - 24 V
Board dimensions3.94 x 3.94" (100 x 100 mm)
Width3.94" (100 mm)
Depth3.94" (100 mm)
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
