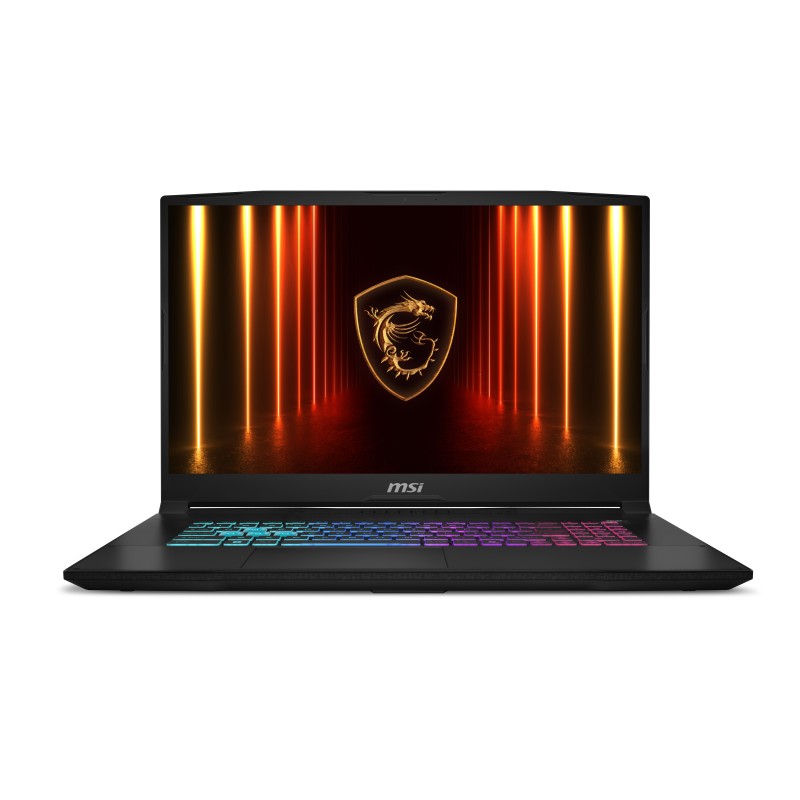

MSI Katana 17 HX B14WFK Intel® Core™ i7 i7-14650HX Laptop 17.3" Full HD 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi

MSI Katana 17 HX B14WFK. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14650HX. Display diagonal: 17.3", HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Home. Product color: Black

Product type	Laptop
Product color	Black
Form factor	Clamshell
Original brand name	MSI
Display diagonal	17.3"
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS-Level
Native aspect ratio	16:9
Anti-glare screen	Yes
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14650HX
Processor generation	Intel® Core™ i7 (14th gen)
Processor cores	16
Processor threads	24
Processor boost frequency	5.2 GHz
Performance cores	8
Efficient cores	8
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	2.2 GHz
Efficient-core base frequency	1.6 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Processor base power	55 W
Maximum turbo power	157 W
Internal memory	16 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	5600 MHz
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
On-board graphics card model	Intel® UHD Graphics
Discrete GPU manufacturer	NVIDIA
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Audio system	Nahimic 3
Number of built-in speakers	2
Speaker power	2 W
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Motherboard chipset	Intel HM770
Numeric keypad	Yes
Pointing device	Touchpad
Keyboard backlit	Yes
Keyboard backlit color	RGB
Keyboard backlit zone	4-zone RGB
Copilot key	Yes
Operating system installed	Windows 11 Home
Battery capacity	75 Wh
Number of battery cells	4
USB Type-C charging port	Yes
AC adapter power	240 W
DC-in jack	Yes
USB Power Delivery	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Weight	5.95 lbs (2.7 kg)
Width	15.7" (398 mm)
Depth	10.9" (275.6 mm)
Height	1.09" (27.8 mm)
AC adapter included	Yes
