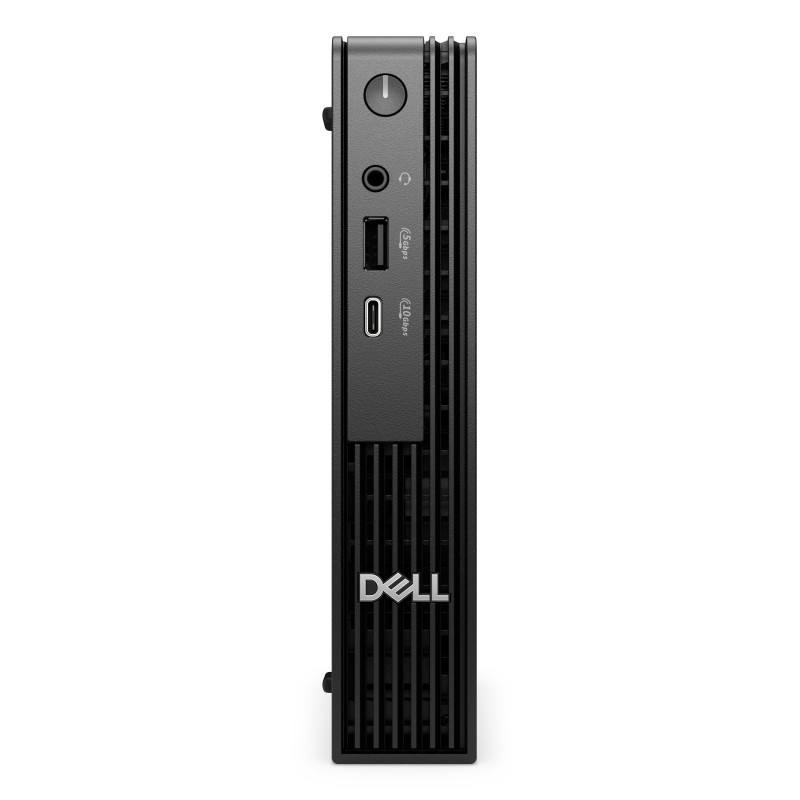

DELL Pro QCM1250 Intel® Core™ i5 i5-14500T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Micro PC Mini PC Black

DELL Pro QCM1250. Processor family: Intel® Core™ i5, Processor model: i5-14500T. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Micro PC. Product type: Mini PC. Weight: 2.56 lbs (1.16 kg). Product color: Black

Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-14500T
Processor generation	Intel® Core™ i5 (14th gen)
Processor cores	14
Processor threads	20
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.2 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	35 W
Maximum turbo power	92 W
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Non-ECC	Yes
Memory channels	Single-channel
Memory data transfer rate	4800 MT/s
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel WGI219LM
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type	2x2
Antenna design	Internal
Bluetooth	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4a
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	4
Number of front USB ports	2
Number of front audio ports	1
Power supply	90 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 / 60 Hz
Chassis type	Micro PC
Product color	Black
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Display included	No
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Operating shock	40 G
Non-operating shock	105 G
Width	1.42" (36 mm)
Depth	7.01" (178 mm)
Height	7.17" (182 mm)
Weight	2.56 lbs (1.16 kg)
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
Total carbon footprint (kg of CO2e)	77.6
Carbon emissions, manufacturing (kg of CO2e)	41.52
Carbon emissions, logistics (kg of CO2e)	2.17
Carbon emissions, energy usage (kg of CO2e)	33.45
Carbon emissions, end-of-life (kg of CO2e)	0.54
PAIA version	GaBi version 1, 2024
