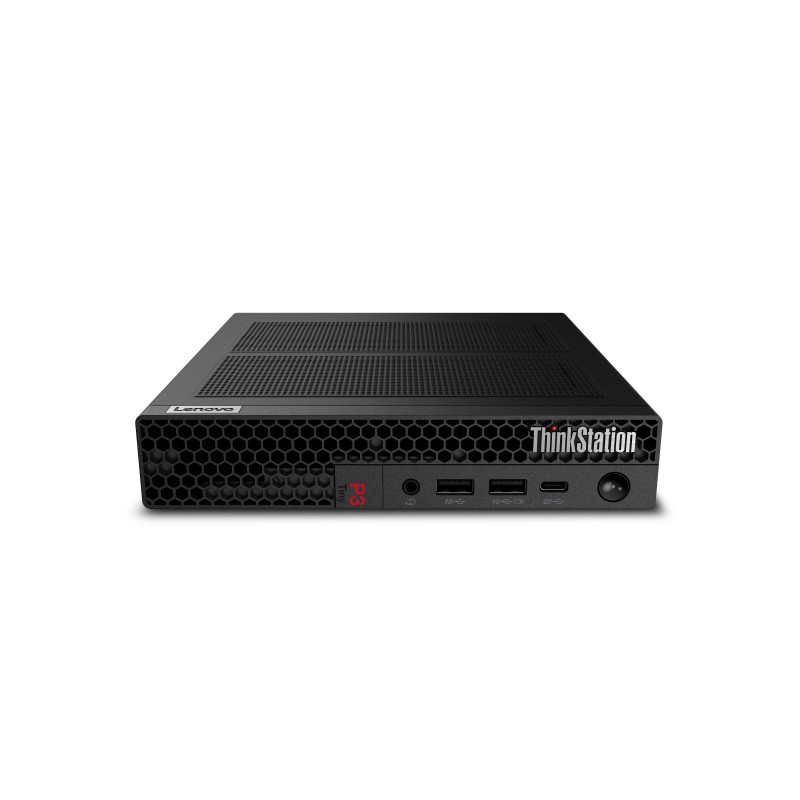

Lenovo ThinkStation P3 Tiny Gen 2 Intel Core Ultra 5 235 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Workstation Black

Lenovo ThinkStation P3 Tiny Gen 2. Processor family: Intel Core Ultra 5, Processor model: 235. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 170 W. Chassis type: Mini PC. Product type: Workstation. Weight: 3.09 lbs (1.4 kg). Product color: Black

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	235
Processor generation	Intel Core Ultra (Series 2)
Processor cores	14
Processor threads	14
Processor boost frequency	5 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	3.4 GHz
Efficient-core base frequency	2.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	121 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	27 TOPs
NPU performance up to	13 TOPs
GPU performance up to	6 TOPs
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Product type	Workstation
Motherboard chipset	Intel® Q870
Trusted Platform Module (TPM)	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Power supply	170 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50/60 Hz
Chassis type	Mini PC
Product color	Black
Color name	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German
Display included	No
Audio chip	Realtek ALC233VB
Audio system	High Definition Audio
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 480000" (0 - 12192 m)
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.46" (37 mm)
Weight	3.09 lbs (1.4 kg)
Mouse included	Yes
Mouse connectivity	Wired
Keyboard included	Yes
Keyboard connectivity	Wired
