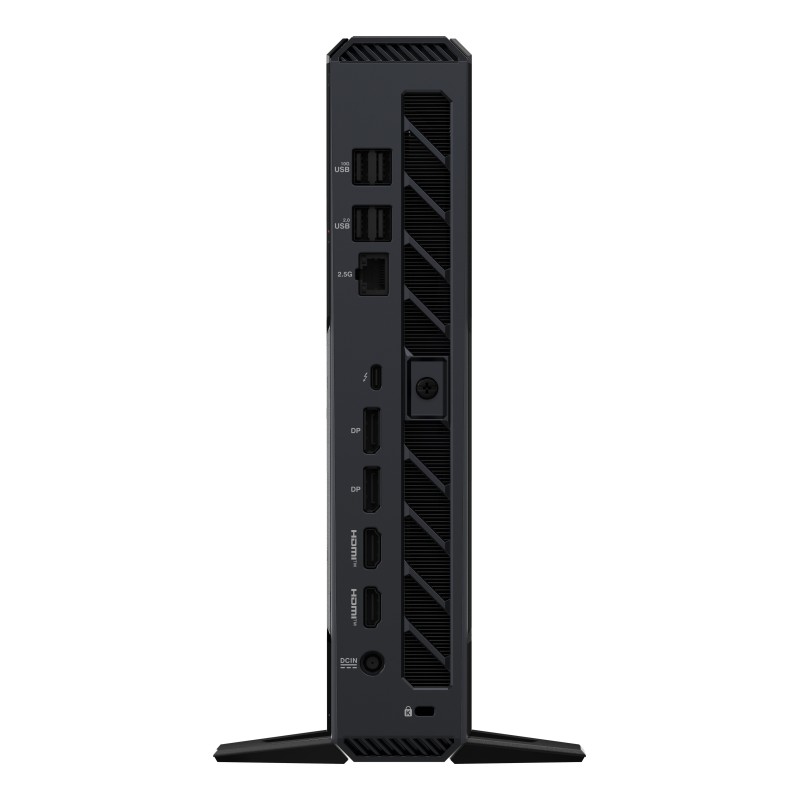

ASUS ROG NUC RNUC15JNK7X569A2 Intel Core Ultra 7 255HX 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Windows 11 Home Mini

ASUS ROG NUC RNUC15JNK7X569A2. Processor family: Intel Core Ultra 7, Processor model: 255HX. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 6400 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 6.88 lbs (3.12 kg). Product color: Black

Processor family	Intel Core Ultra 7
Processor manufacturer	Intel
Processor model	255HX
Processor generation	Intel Core Ultra (Series 2)
Processor cores	20
Processor threads	20
Processor boost frequency	5.2 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	2.4 GHz
Efficient-core base frequency	1.8 GHz
Processor cache	30 MB
Processor base power	55 W
Maximum turbo power	160 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	33 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	16 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory clock speed	6400 MHz
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	1 TB
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5060
On-board graphics card model	Intel® Graphics
Discrete GPU manufacturer	NVIDIA
Number of discrete graphics cards	1
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE200
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	5
Number of front USB ports	3
Chassis type	Mini PC
Product color	Black
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Market positioning	Gaming
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Width	11.1" (282.4 mm)
Depth	7.39" (187.7 mm)
Height	2.22" (56.5 mm)
Weight	6.88 lbs (3.12 kg)
Package width	14.6" (370 mm)
Package depth	10.2" (258 mm)
Package height	7.48" (190 mm)
Package weight	12.3 lbs (5.6 kg)
Display included	No
