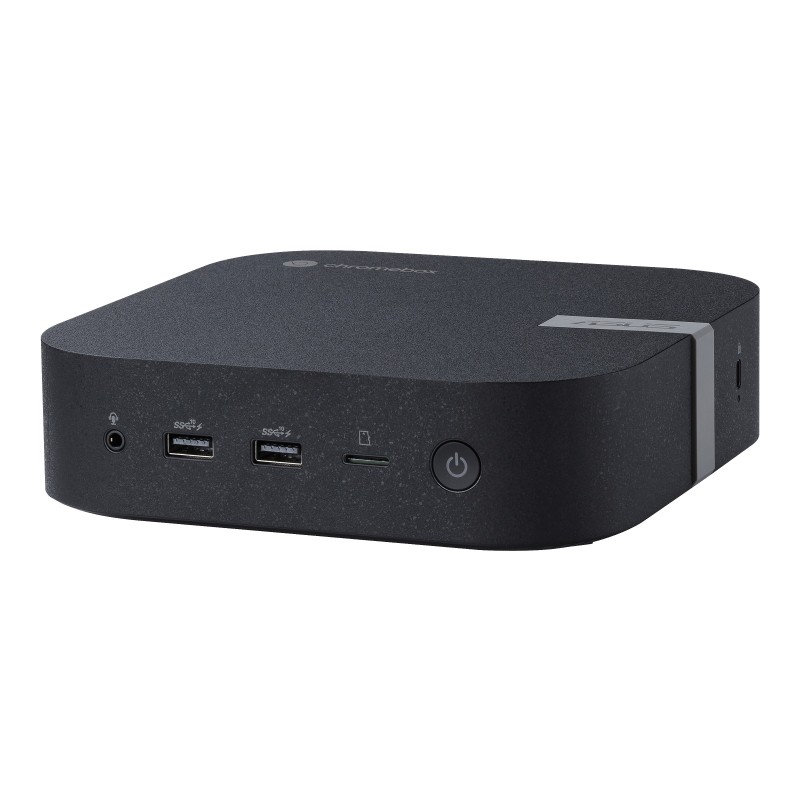

ASUS Chromebox CHROMEBOX5-S7009UN Intel® Core™ i7 i7-1260P 16 GB DDR4-SDRAM 256 GB SSD ChromeOS Mini PC Black

ASUS Chromebox CHROMEBOX5-S7009UN. Processor family: Intel® Core™ i7, Processor model: i7-1260P. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Operating system installed: ChromeOS. Chassis type: Mini PC. Product type: Mini PC. Weight: 28.2 oz (800 g). Product color: Black

Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-1260P
Processor generation	12th gen Intel® Core™ i7
Processor cores	12
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor base power	28 W
Maximum turbo power	64 W
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 16 GB
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	3
Number of front USB ports	2
Number of front audio ports	1
Chassis type	Mini PC
Product color	Black
Color name	ECO Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Operating system installed	ChromeOS
Certification	BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI
Width	6.56" (166.5 mm)
Depth	6.53" (165.8 mm)
Height	1.81" (45.9 mm)
Weight	28.2 oz (800 g)
Package width	13.1" (334 mm)
Package depth	8.11" (206 mm)
Package height	2.72" (69 mm)
Package weight	3.97 lbs (1.8 kg)
Display included	No
