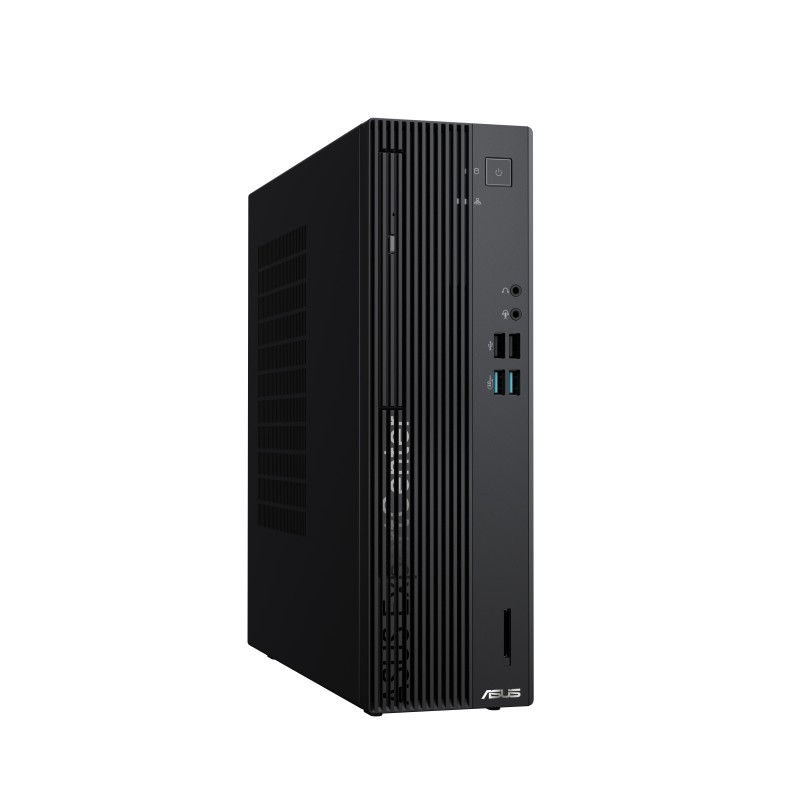

ASUS ExpertCenter S5 SFF S501SER-714700001X Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Tower PC Black

ASUS ExpertCenter S5 SFF S501SER-714700001X. Processor family: Intel® Core™ i7, Processor model: i7-14700. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 180 W. Chassis type: Tower. Product type: PC. Weight: 13.2 lbs (6 kg). Product color: Black

Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700
Processor generation	Intel® Core™ i7 (14th gen)
Processor cores	20
Processor threads	28
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	219 W
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x DIMM
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics 770
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI version	1.4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Combo headphone/mic port	Yes
Number of rear USB ports	4
Number of front USB ports	4
Number of front audio ports	2
Number of rear audio ports	3
Number of SATA III connectors	4
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Chassis type	Tower
Product color	Black
Color name	Extreme Dark Gray
Number of 3.5" bays	1
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Introduction year	2025
Product type	PC
Market positioning	Business
Motherboard chipset	Intel B760
Audio system	High Definition Audio
Audio output channels	7.1 channels
Password protection	Yes
Password protection type	HDD, User
Trusted Platform Module (TPM)	Yes
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Power supply	180 W
80 PLUS certification	80 PLUS Bronze
Width	3.66" (93 mm)
Depth	11.7" (296 mm)
Height	12.2" (309 mm)
Weight	13.2 lbs (6 kg)
Package width	19.3" (490 mm)
Package depth	6.61" (168 mm)
Package height	20.1" (510 mm)
Package weight	13.8 lbs (6.25 kg)
Mouse included	Yes
Mouse connectivity	Wired
Keyboard included	Yes
Keyboard connectivity	Wired
Display included	No
