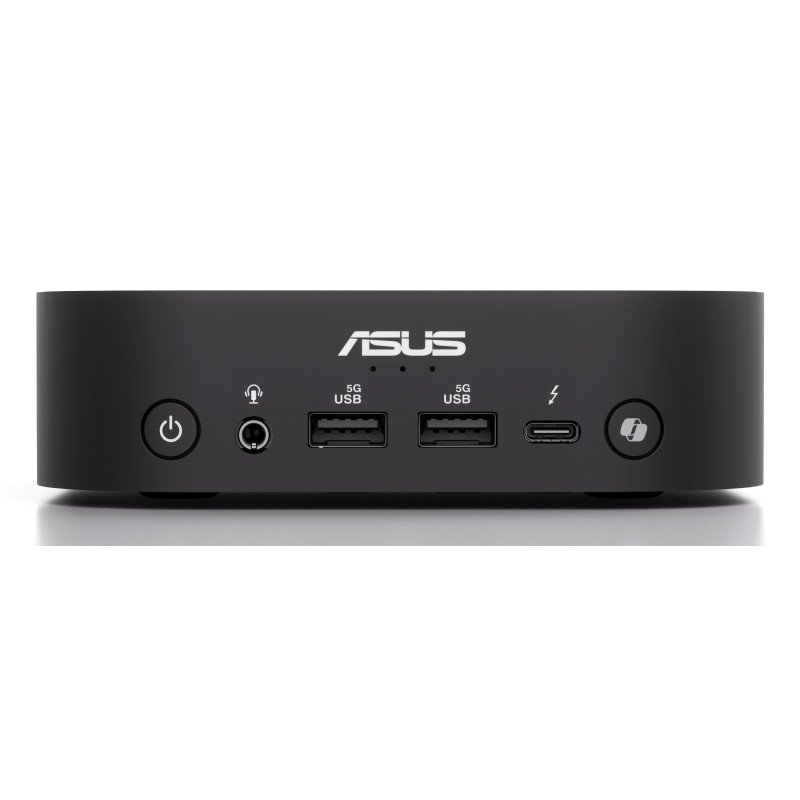

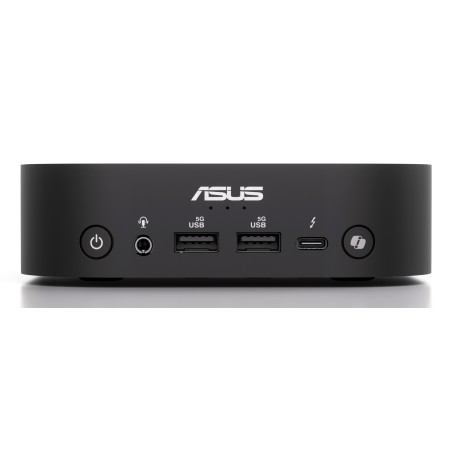

ASUS NUC RNUC14LNKU9094H2 Intel Core Ultra 9 288V 32 GB LPDDR5x-SDRAM 1 TB SSD Windows 11 Home Mini PC Black

ASUS NUC RNUC14LNKU9094H2. Processor family: Intel Core Ultra 9, Processor model: 288V. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM, Memory clock speed: 8533 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 17.6 oz (500 g). Product color: Black

Processor family	Intel Core Ultra 9
Processor manufacturer	Intel
Processor model	288V
Processor generation	Intel Core Ultra (Series 2)
Processor cores	8
Processor threads	8
Processor boost frequency	5.1 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	5.1 GHz
Low Power Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	3.3 GHz
Low Power Efficient-core Base Frequency	3300 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor base power	30 W
Maximum turbo power	37 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	120 TOPs
NPU performance up to	48 TOPs
GPU performance up to	67 TOPs
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	8533 MHz
Memory channels	Dual-channel
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 140V
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
LAN controller	Intel I226-V
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE201
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	3
Number of front USB ports	3
Number of front audio ports	1
Chassis type	Mini PC
Product color	Black
Placement supported	Horizontal
Cable lock slot	Yes
Cable lock slot type	Kensington
Introduction year	2025
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel SoC
Audio chip	Realtek ALC3288
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Power supply	120 W
Width	5.12" (130 mm)
Depth	5.12" (130 mm)
Height	1.34" (34 mm)
Weight	17.6 oz (500 g)
Display included	No
