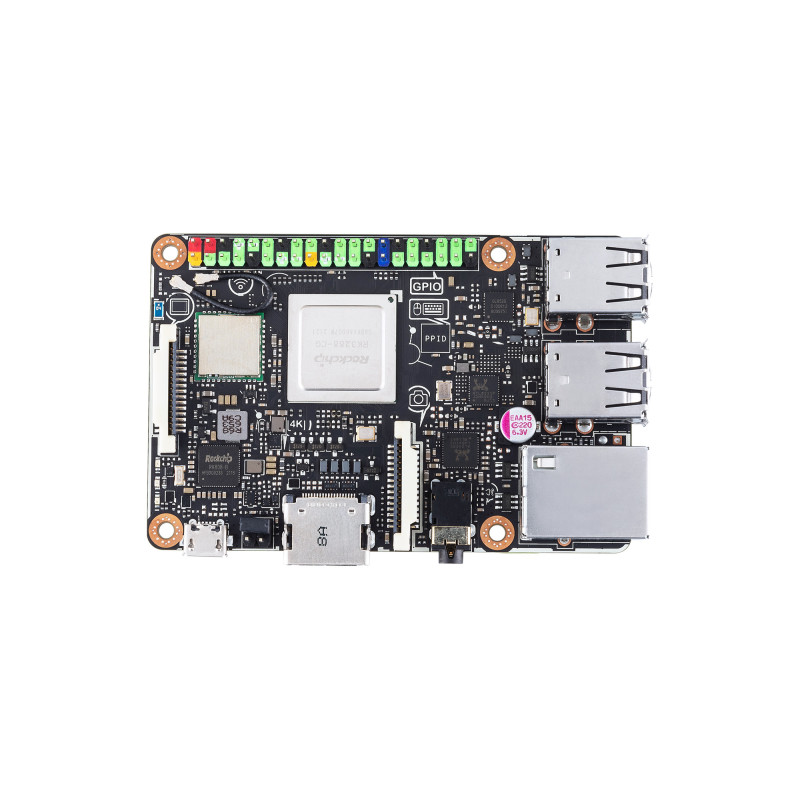

ASUS Tinker Board S R2.0 development board Rockchip RK3288

ASUS Tinker Board S R2.0. Processor manufacturer: Rockchip, Processor model: Rockchip RK3288. Maximum internal memory: 2 GB, Internal memory type: DDR3-SDRAM, Memory channels: Dual-channel. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Ethernet interface type: Gigabit Ethernet, Audio port type: 3.5mm. MultiVolt I/Os: 3.3,5 V. Height: 3.37" (85.5 mm), Weight: 1.94 oz (55 g), Width: 2.13" (54 mm)

Processor manufacturer	Rockchip
Processor model	Rockchip RK3288
Processor cores	4
Maximum internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory channels	Dual-channel
eMMC capacity	16 GB
Compatible memory cards	MicroSD (TransFlash)
Wi-Fi	Yes
Ethernet LAN	Yes
USB version	2.0
USB ports quantity	4
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
Audio port type	3.5mm
Bluetooth	Yes
Bluetooth version	4.2+EDR
S/PDIF out port	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
UART	Yes
GPIO interface	Yes
I2C interface	Yes
MPI DSI interface	Yes
MPI CSI interface	Yes
Integrated LAN	Yes
SPI interface	Yes
I2S interface	Yes
PCM interface	Yes
MultiVolt I/Os	3.3,5 V
Height	3.37" (85.5 mm)
Weight	1.94 oz (55 g)
Width	2.13" (54 mm)
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
