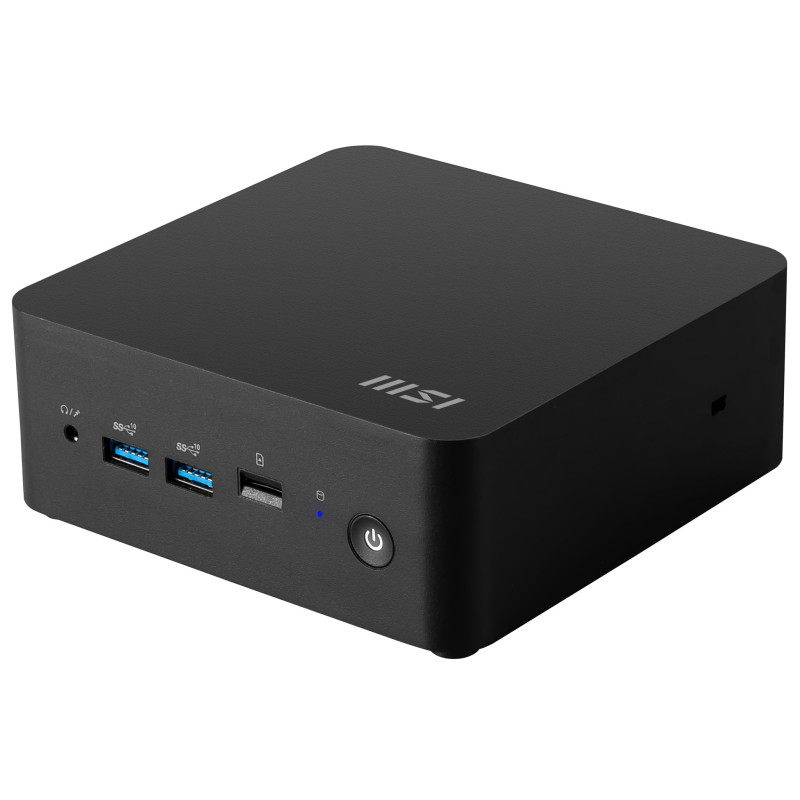

MSI Cubi NUC 1MG-023DE Intel Core 3 100U 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Mini PC Nero - TASTIERA QWERTZ

MSI Cubi NUC 1MG-023DE. Processor family: Intel Core 3, Processor model: 100U. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 256 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 22.2 oz (630 g). Product color: Black

Processor family	Intel Core 3
Processor manufacturer	Intel
Processor model	100U
Processor generation	Intel Core (Series 1)
Processor cores	6
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.9 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Number of processors supported	1
Processor base power	15 W
Maximum turbo power	55 W
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Supported memory types	DDR5-SDRAM
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI version	1.4b/2.1
DisplayPorts quantity	0
Ethernet LAN (RJ-45) ports	2
Microphone in	No
Headphone outputs	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Chassis type	Mini PC
Product color	Black
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Housing material	Plastic
Product type	Mini PC
Motherboard chipset	Intel SoC
Motherboard form factor	NUC
Built-in speaker(s)	No
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	Windows 11 Pro
Power supply	120 W
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Certification	FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Width	5.22" (132.5 mm)
Depth	5.34" (135.6 mm)
Height	1.97" (50.1 mm)
Weight	22.2 oz (630 g)
Package width	8.07" (205 mm)
Package depth	8.66" (220 mm)
Package height	3.7" (94 mm)
Package weight	3.04 lbs (1.38 kg)
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Power cord included	Yes
Display included	No
Power supply type	External AC adapter
Panel mounting interface	100 x 100 mm
Graphics card family	Intel
Cooling type	Active
Number of displays supported	4
Number of M.2 (M) slots	2
