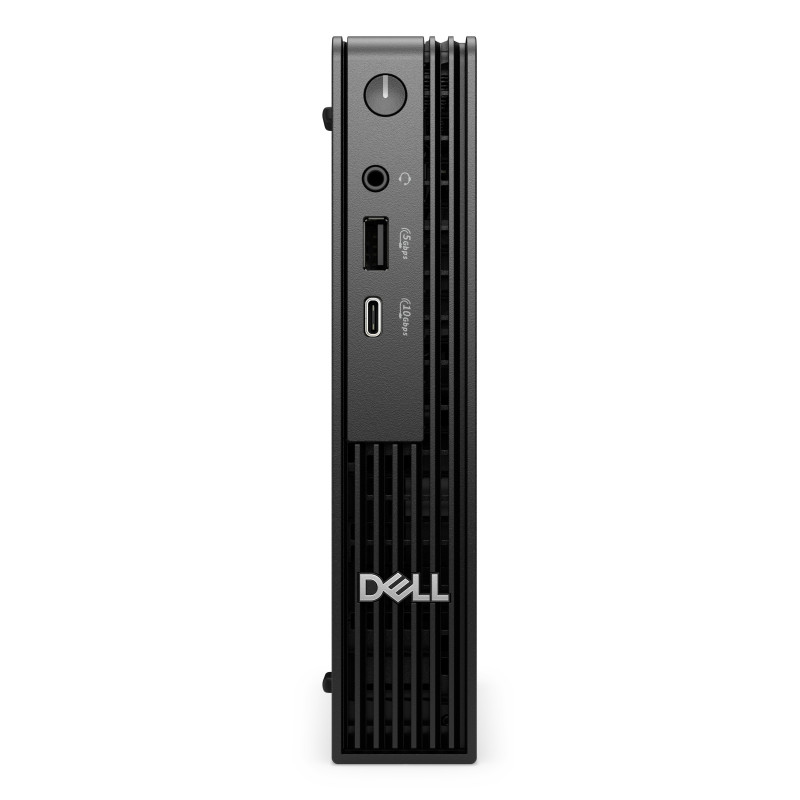

DELL Pro QCM1250, Intel® Core™ i5, i5-14500T, 16 GB, 512 GB, Windows 11 Pro, 64-bit
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-14500T |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 35 W |
| Maximum turbo power | 92 W |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Non-ECC | Yes |
| Memory channels | Single-channel |
| Memory data transfer rate | 4800 MT/s |
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI219LM |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Bluetooth | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Chassis type | Micro PC |
| Product color | Black |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Intel® vPro™ Platform Eligibility | Yes |
| Product type | Mini PC |
| Market positioning | Business |
| Motherboard chipset | Intel Q870 |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 / 60 Hz |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -598.4 - 120000" (-15.2 - 3048 m) |
| Non-operating altitude | -598.4 - 420000" (-15.2 - 10668 m) |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Width | 1.42" (36 mm) |
| Depth | 7.01" (178 mm) |
| Height | 7.17" (182 mm) |
| Weight | 2.56 lbs (1.16 kg) |
| Display included | No |
