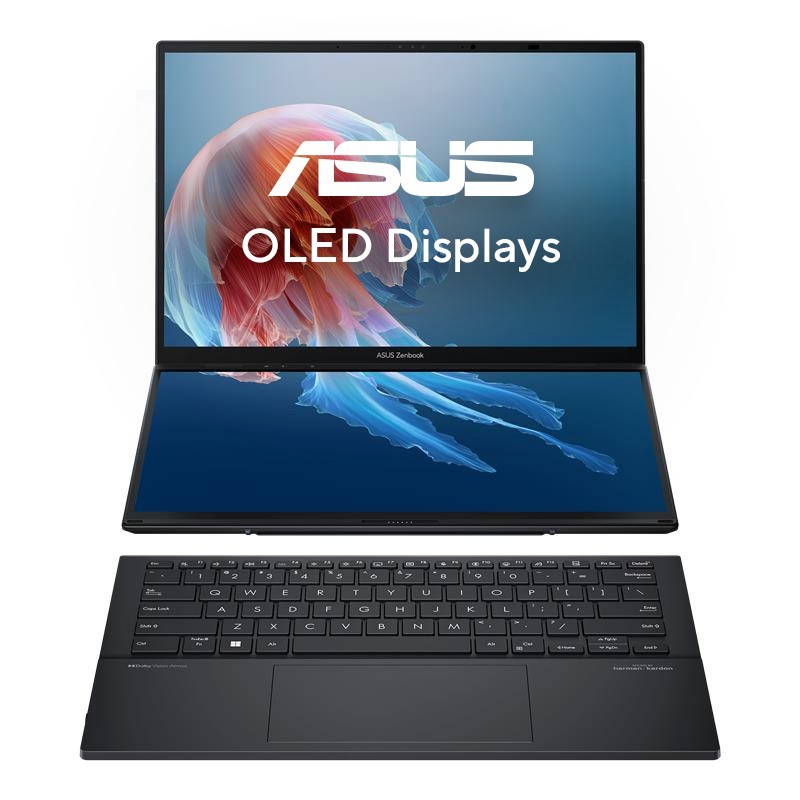

ASUS Zenbook Duo UX8406CA-PZ195X. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 14", HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product color: Gray
| Product type | Hybrid (2-in-1) |
| Product color | Gray |
| Form factor | Convertible (Detachable) |
| Color name | Inkwell Gray |
| Housing material | Aluminum, Magnesium |
| Market positioning | Home |
| Display diagonal | 14" |
| Display resolution | 2880 x 1800 pixels |
| Touchscreen | Yes |
| HD type | 3K |
| Panel type | OLED |
| Display number of colors | 1.07 billion colors |
| Native aspect ratio | 16:10 |
| Display surface | Gloss |
| Display brightness | 400 cd/m² |
| Maximum display brightness (HDR) | 550 cd/m² |
| RGB color space | DCI-P3 |
| Color gamut | 100% |
| Display response rise/fall | 0.2 ms |
| Maximum refresh rate | 120 Hz |
| Contrast ratio (typical) | 1000000:1 |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
| Processor family | Intel Core Ultra 9 |
| Processor manufacturer | Intel |
| Processor model | 285H |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 16 |
| Processor threads | 16 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 2.9 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Low Power Efficient-core Base Frequency | 1000 MHz |
| Processor cache | 24 MB |
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 99 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 77 TOPs |
| Internal memory | 32 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Total storage capacity | 2 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Arc 140T |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| Audio system | Smart Amp |
| Built-in microphone | Yes |
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | Micosoft 365 30 days |
| Battery capacity | 75 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| USB Type-C charging port | Yes |
| AC adapter power | 65 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| USB Power Delivery | Yes |
| Face recognition | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Weight | 3.64 lbs (1.65 kg) |
| Width | 12.3" (313.5 mm) |
| Depth | 8.58" (217.9 mm) |
| Height (front) | 0.575" (1.46 cm) |
| Height (rear) | 0.783" (1.99 cm) |
| Package width | 18" (456 mm) |
| Package depth | 4.02" (102 mm) |
| Package height | 11.2" (284 mm) |
| Package weight | 4.19 lbs (1.9 kg) |
| AC adapter included | Yes |
