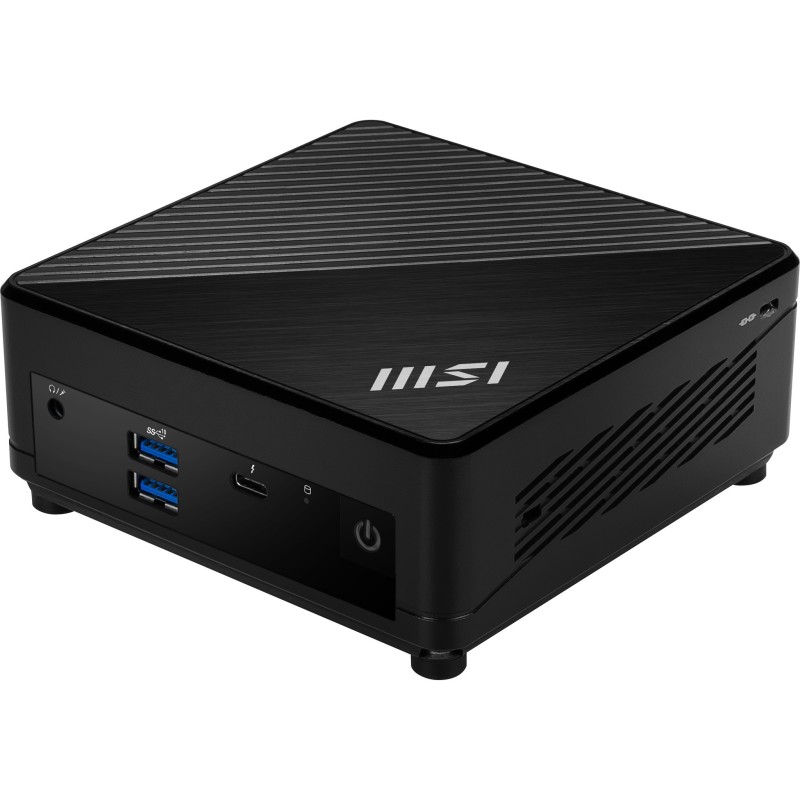

MSI CUBI 5 12M-459EU PC/workstation Intel® Core™ i5 i5-1235U 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Home Mini PC Black

MSI CUBI 5 12M-459EU. Processor family: Intel® Core™ i5, Processor model: i5-1235U. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Wi-Fi. Operating system installed: Windows 11 Home. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 20.8 oz (590 g). Product color: Black

Processor family	Intel® Core™ i5
Processor manufacturer	Intel
Processor model	i5-1235U
Processor generation	12th gen Intel® Core™ i5
Processor cores	10
Processor threads	12
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Configurable TDP-down	12 W
Processor base power	15 W
Maximum turbo power	55 W
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory clock speed	3200 MHz
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	No
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card family	Intel Iris Xe Graphics
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
DVI port	No
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Chassis type	Mini PC
Product color	Black
Volume	0.66 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel SoC
Audio output channels	2.1 channels
Operating system installed	Windows 11 Home
Embedded options available	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
CPU configuration (max)	1
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Power supply	65 W
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM
Width	4.88" (124 mm)
Depth	4.88" (124 mm)
Height	2.11" (53.7 mm)
Weight	20.8 oz (590 g)
Package width	8.7" (221 mm)
Package depth	19.9" (506 mm)
Package height	18.5" (469 mm)
Package weight	2.93 lbs (1.33 kg)
Mouse included	No
Keyboard included	No
Display included	No
Warranty period	3 year(s)
