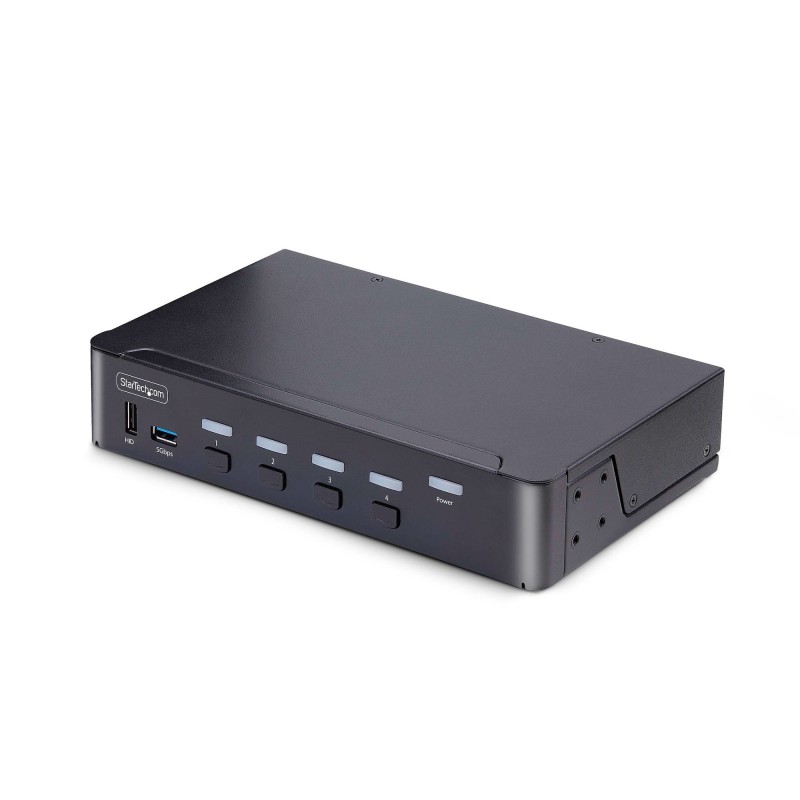

StarTech.com D86A2-4-PORT-8K-KVM, 7680 x 4320 pixels, 8K Ultra HD, 36 W, Black
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console DisplayPorts ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Data transfer rate (max) | 5000 Gbit/s |
| Scan interval | 3,8,15,30 s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Daisy chain | No |
| Chipset | GL-3523 |
| HDCP version | 1.4/2.2 |
| Rack mounting | No |
| Product color | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 130000 h |
| Built-in display | No |
| Power source | DC |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Width | 5.12" (130 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.73" (44 mm) |
| Weight | 2.2 lbs (1 kg) |
| Package width | 16.1" (409 mm) |
| Package depth | 8.35" (212 mm) |
| Package height | 3.43" (87 mm) |
| Package weight | 3.53 lbs (1.6 kg) |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Master (outer) case width | 21.5" (545 mm) |
| Master (outer) case length | 16.8" (427 mm) |
| Master (outer) case height | 9.65" (245 mm) |
| Quantity per master (outer) case | 60 pc(s) |
| Sustainability compliance | Yes |
| IP control | No |
