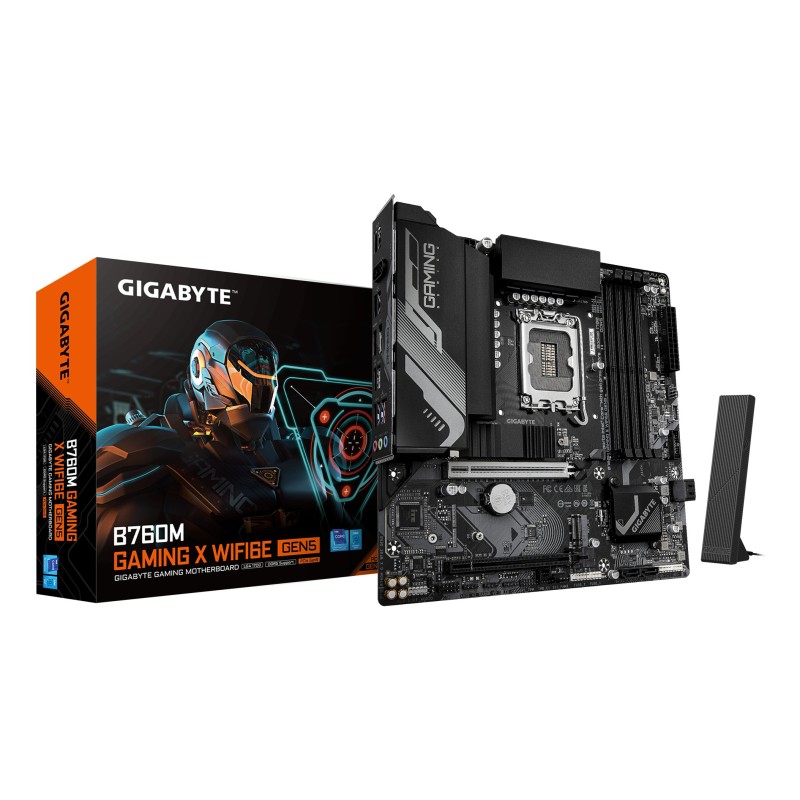

GIGABYTE B760M GAMING X WIFI6E GEN5 Mainboard – Unterstützt Intel Core Prozessoren der 14. Generation, 8+1+1 Phasen VRM, bis zu 5600 MHz DDR5, 2 x PCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| RAM-Speicher maximal | 256 GB |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 5600,5200,4800,4400 MHz |
| Unterstützte Speichertaktrate (max.) | 5600 MHz |
| Unbuffered Speicher | Ja |
| Maximaler interner Speicher pro Steckplatz | 64 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, PCI Express 4.0, SATA III |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 4096 x 2304 Pixel |
| HDCP | Ja |
| DirectX-Version | 12.0 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| S/PDIF aus Stecker | Ja |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 3 |
| EPS Stromstecker (8-pin) | Ja |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| TPM-Anschluss | Ja |
| Serielle Port-Headers | 1 |
| Thunderbolt-Stiftleisten | 2 |
| 12-V-Stromanschluss | Ja |
| RGB-LED-Stiftleiste | Ja |
| Anzahl der RGB-LED-Stiftleisten | 4 |
| Anzahl USB 2.0 Anschlüsse | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 0 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 0 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.2 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
| WiFi-AP-Antennenbuchse | 2 |
| WLAN | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Realtek RTL8125 |
| Top WLAN-Standard | Wi-Fi 6E (802.11ax) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN-Controllermodell | Intel Wi-Fi 6E AX210 |
| Bluetooth | Ja |
| Bluetooth-Version | 5.3 |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Motherboard Chipsatz | Intel B760 |
| Audio Kanäle | 7.1 Kanäle |
| Audio-Chip | Realtek ALC897 |
| Produktfarbe | Dark brown |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
| PCI-Express x16 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| 2. M.2 größte Schlüsselgröße | 22110 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 5.0 |
| Clear CMOS-Jumper | Ja |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
| Ursprungsland | China |
| Menge pro Versandkarton | 1 Stück(e) |
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
| Verpackungsbreite | 270 mm |
| Verpackungstiefe | 268 mm |
| Verpackungshöhe | 68 mm |
| Paketgewicht | 1,6 kg |
| Breite | 244 mm |
| Tiefe | 244 mm |
| Höhe | 35 mm |
| Akkus/Batterien enthalten | Ja |
| Antenne enthalten | Ja |
| Schrauben enthalten | Ja |
| Mitgelieferte Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Gewicht | 1,42 kg |
| Garantiezeit | 3 Jahr(e) |
