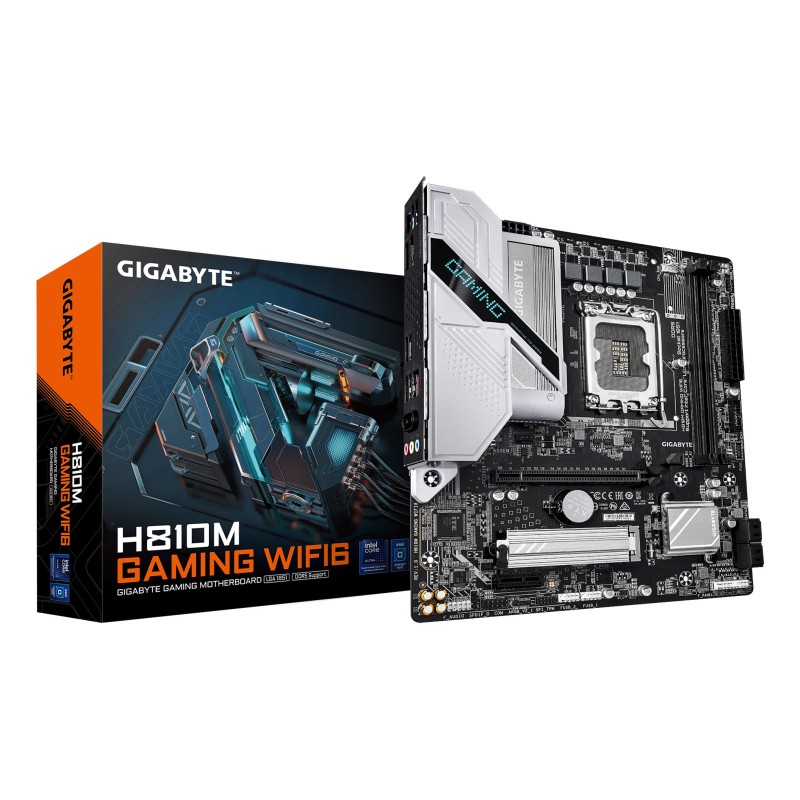

GIGABYTE H810M GAMING WIFI6 Mainboard – Intel Core Ultra (Serie 2) CPUs, 4+1+2 Phasen VRM, bis zu 6400 MHz DDR5, 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 128 GB
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1851 (Socket V1) |
| Kompatible Prozessoren | Intel Core Ultra (Series 2) |
| Unterstützte Prozessorsteckplätze | LGA 1851 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 128 GB |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 5600,6400 MHz |
| Unterstützte Speichertaktrate (max.) | 6400 MHz |
| Unbuffered Speicher | Ja |
| Maximaler interner Speicher pro Steckplatz | 64 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, PCI Express 4.0, SATA III |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 5 |
| RAID-Unterstützung | Ja |
| RAID Level | 0, 1, 5, 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 4096 x 2160 Pixel |
| HDCP | Ja |
| DirectX-Version | 12.0 |
| Anzahl USB 2.0 Schnittstellen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 0 |
| SATA III Anschlüsse | 4 |
| S/PDIF aus Stecker | Ja |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 2 |
| EPS Stromstecker (8-pin) | Ja |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| TPM-Anschluss | Ja |
| Serielle Port-Headers | 1 |
| RGB-LED-Stiftleiste | Ja |
| Anzahl der RGB-LED-Stiftleisten | 2 |
| Anzahl USB 2.0 Anschlüsse | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 0 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 0 |
| Anzahl PS/2 Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 2.1 |
| Kopfhörerausgänge | 1 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
| WiFi-AP-Antennenbuchse | 2 |
| WLAN | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Realtek RTL8125 |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN-Controllermodell | Realtek RTL8851BE |
| Bluetooth | Ja |
| Bluetooth-Version | 5.3 |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Motherboard Chipsatz | Intel H810 |
| Audio Kanäle | 7.1 Kanäle |
| Audio-Chip | Realtek ALC897 |
| Produktfarbe | Dark brown |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64, Windows 11 x64 |
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 256 Mbit |
| ACPI-Version | 5.0 |
| Clear CMOS-Jumper | Ja |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
| Menge pro Versandkarton | 1 Stück(e) |
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
| Verpackungsbreite | 270 mm |
| Verpackungstiefe | 268 mm |
| Verpackungshöhe | 68 mm |
| Paketgewicht | 1,19 kg |
| Breite | 244 mm |
| Tiefe | 215 mm |
| Höhe | 35 mm |
| Akkus/Batterien enthalten | Ja |
| Antenne enthalten | Ja |
| Schrauben enthalten | Ja |
| Mitgelieferte Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Gewicht | 1,1 kg |
| Garantiezeit | 3 Jahr(e) |
